Commercial Outdoor High-Refresh Screen
TB Series is a high-brightness outdoor fixed LED display designed for reliable operation in demanding outdoor environments. With IP65 protection, powerful brightness up to 6500 nits, and excellent heat dissipation performance, it ensures clear and vivid visuals even under direct sunlight and changing weather conditions. Featuring a durable aluminum cabinet, wide color gamut, high refresh rate, and convenient maintenance design, TB Series provides a stable and efficient outdoor display solution.
Designed for outdoor environments, TB Series features an IP65 protection rating to withstand dust, water, and changing weather conditions. The durable structure allows stable operation without additional protection, making it suitable for long-term outdoor installations.

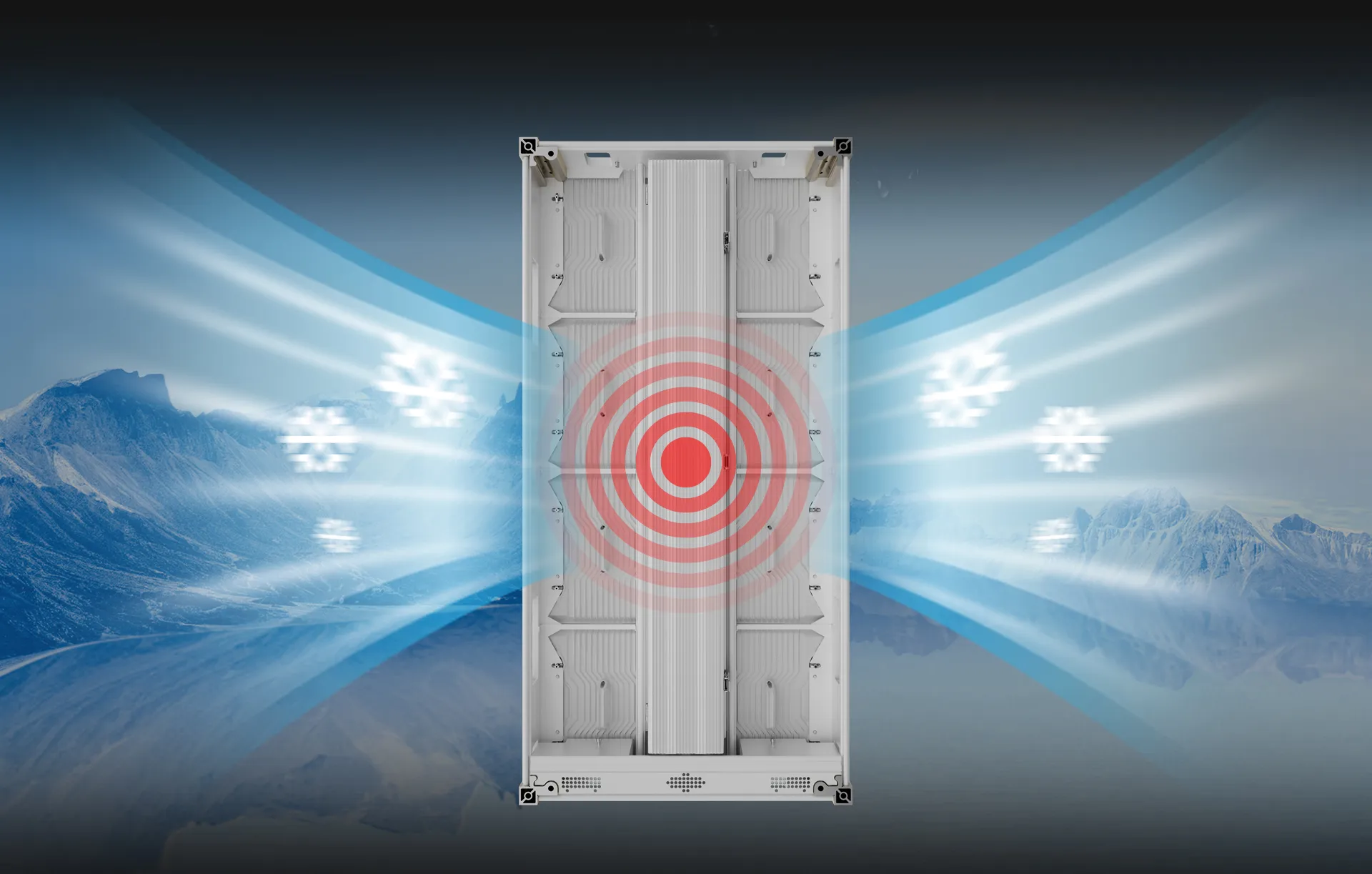

TB Series adopts a full aluminum cabinet design with excellent thermal conductivity. The optimized structure improves heat dissipation efficiency, helping protect internal components and maintain stable performance during extended outdoor operation.

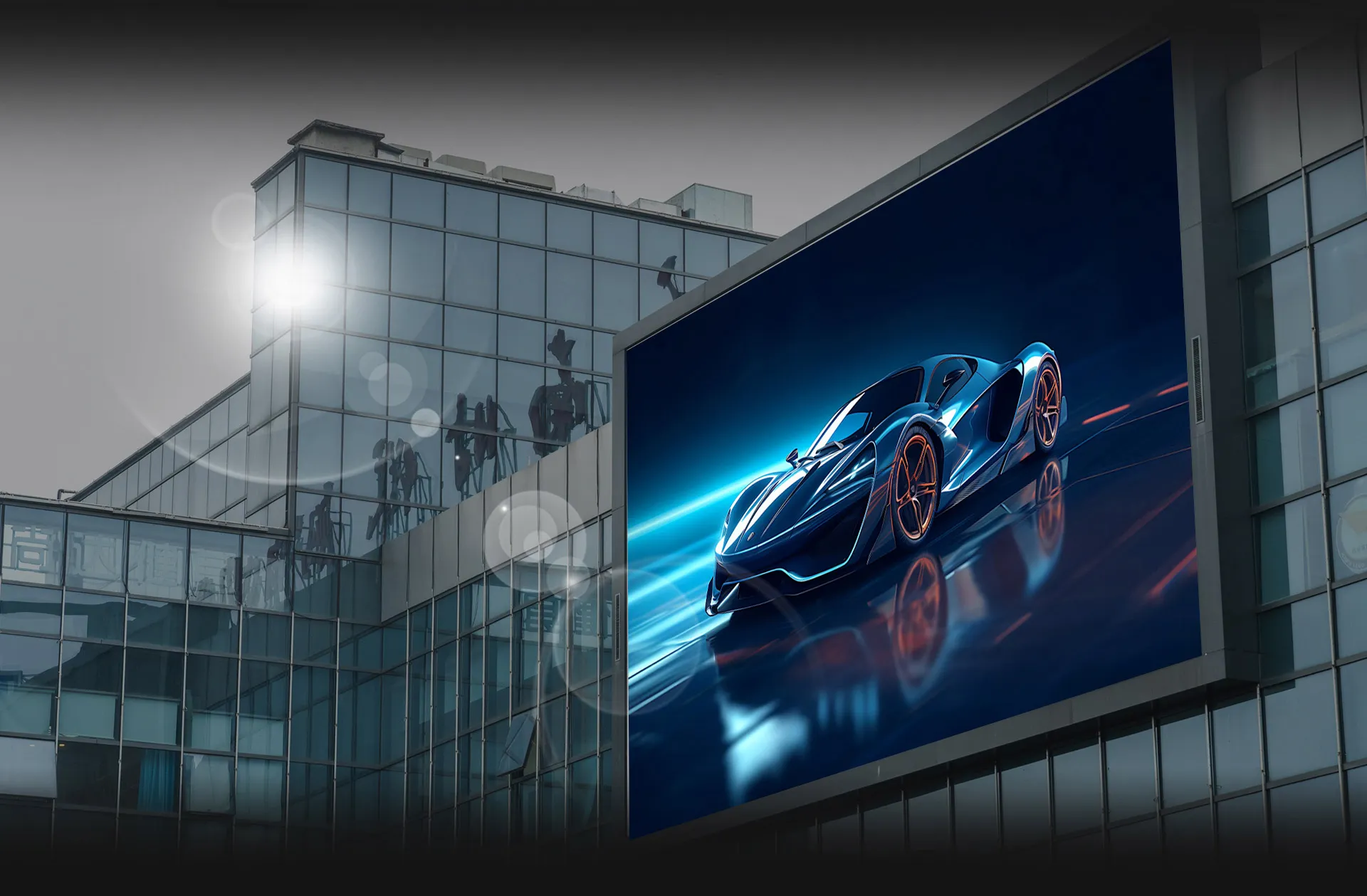

With brightness up to 6500 nits, TB Series delivers clear and vibrant images even under direct sunlight. The high brightness performance ensures excellent visibility and helps content remain impactful throughout the day.
TB Series combines 3840Hz high refresh rate with 110% NTSC wide color gamut technology to deliver vivid colors, smooth motion, and dynamic visual performance. It ensures engaging content presentation for outdoor advertising and public displays.

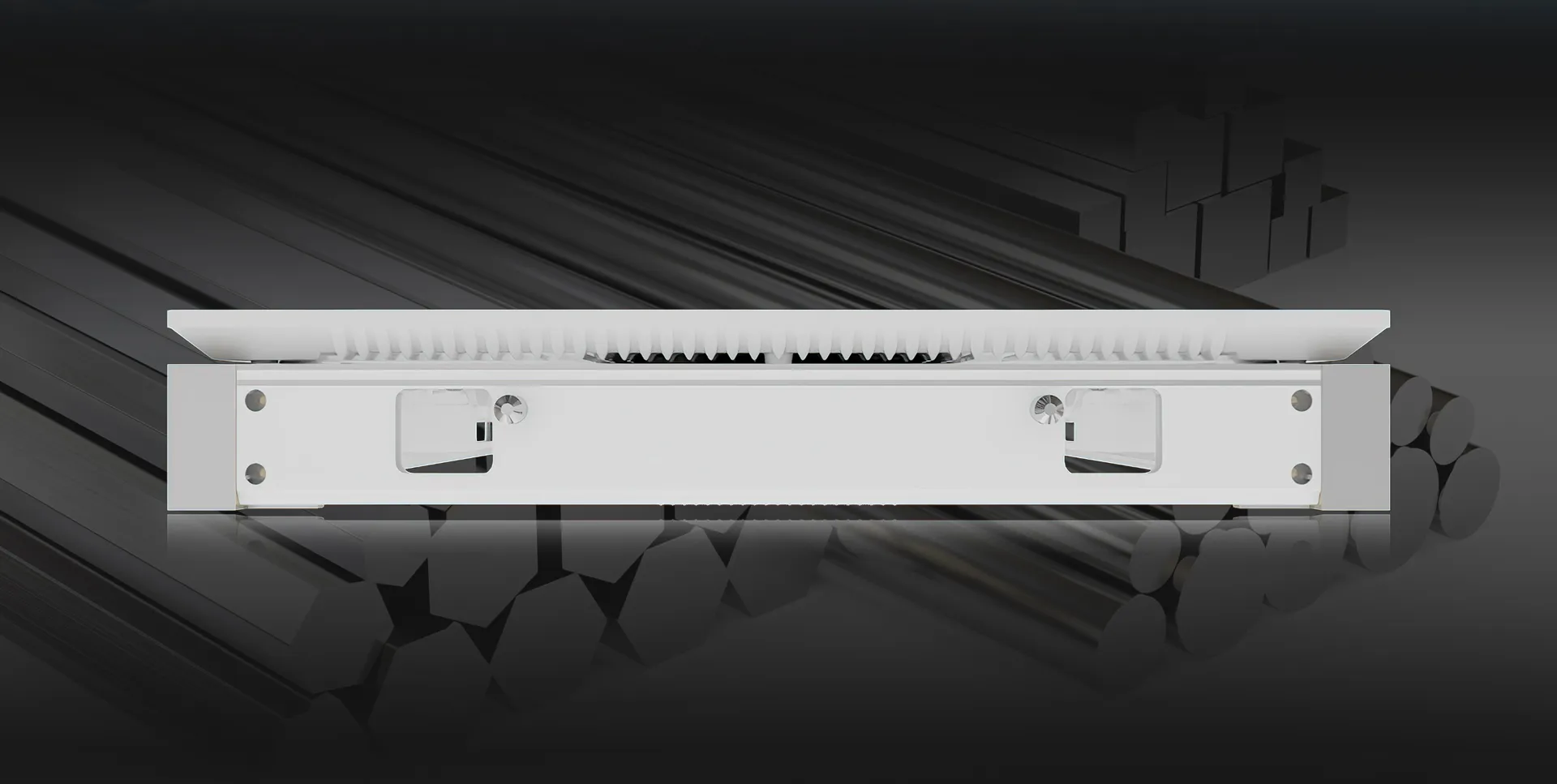

Built with strict manufacturing standards and multiple quality inspection processes, TB Series ensures consistent quality and reliable operation for demanding outdoor applications.
Supporting both front and rear maintenance, TB Series provides flexible service access for different installation environments. The convenient maintenance design helps reduce downtime and improves operational efficiency.
Published specifications. Final values for your configuration are confirmed with your quote.
| Model | T390B-500 | T390B-750 | T390B-1000 | T480B-500 | T480B-750 | T480B-1000 |
|---|---|---|---|---|---|---|
| Pixel Pitch | 3.9 | 3.9 | 3.9 | 4.8 | 4.8 | 4.8 |
| Size | 500×500 | 500×750 | 500×1000 | 500×500 | 500×750 | 500×1000 |
| Material | Aluminum | |||||
| Weight | 9.6 | 12.5 | 16.6 | 9.6 | 12.5 | 16.6 |
| Refresh Rate | 3840 | |||||
