Seamless Commercial Video Wall
Built for continuous professional use, the LM 2 Series indoor fixed LED display guarantees steady performance, outstanding visuals and lasting reliability across P1.2 / P1.5 / P1.8 / P2.5 pixel pitches. It delivers intricate imagery with high refresh rates and true-to-life color reproduction for comfortable long-hour viewing. Thanks to its fully integrated architecture, lightweight cabinets, energy-saving design and auto-calibration function, the LM 2 Series stands out as a dependable, low-maintenance display option.
LM 2 Series features an integrated three-in-one design that combines the power supply, Hub card, and receiving card into a compact structure. This optimized design simplifies system architecture, improves stability, and enhances overall reliability during operation.

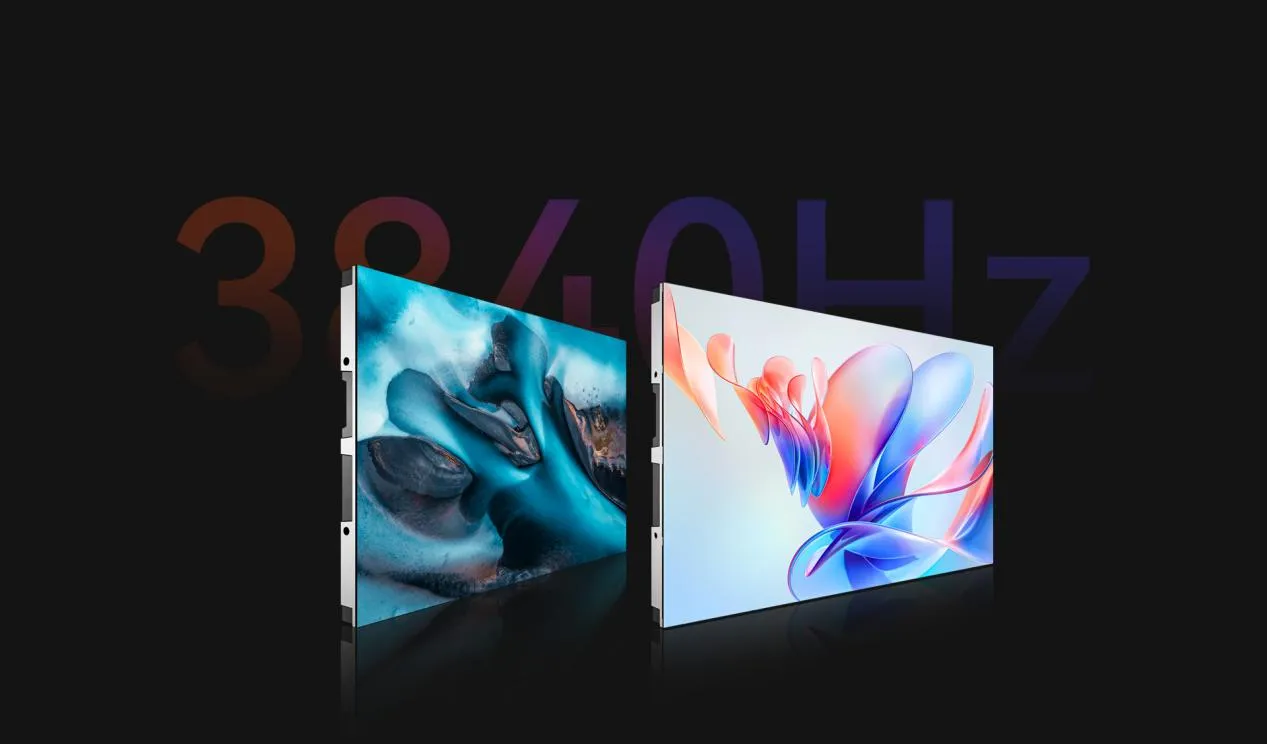

With a 3840Hz high refresh rate and advanced image processing technology, LM 2 Series delivers smooth motion, accurate colors, and enhanced image details. The optimized display performance captures dynamic content clearly and provides a more natural viewing experience.

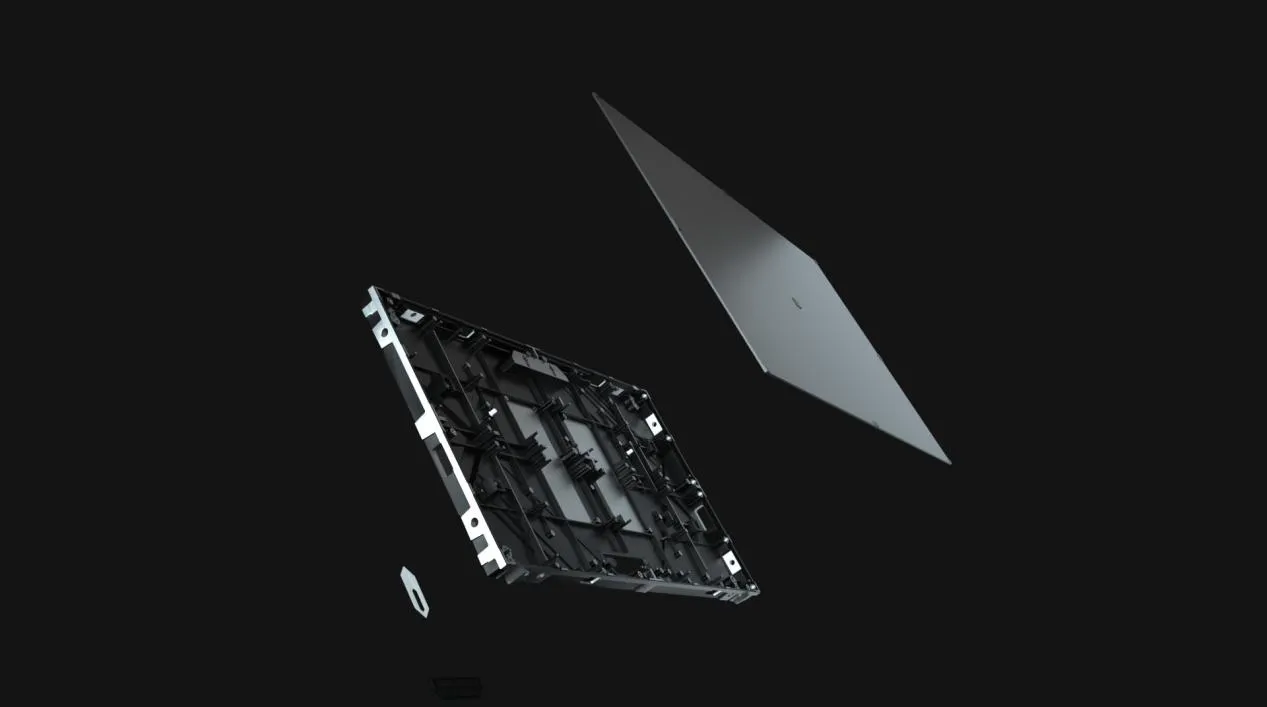

Designed with a lightweight die-cast aluminum cabinet, LM 2 Series weighs only 3.5kg and features a slim 39mm profile. The hidden wiring design creates a cleaner appearance while improving installation efficiency.

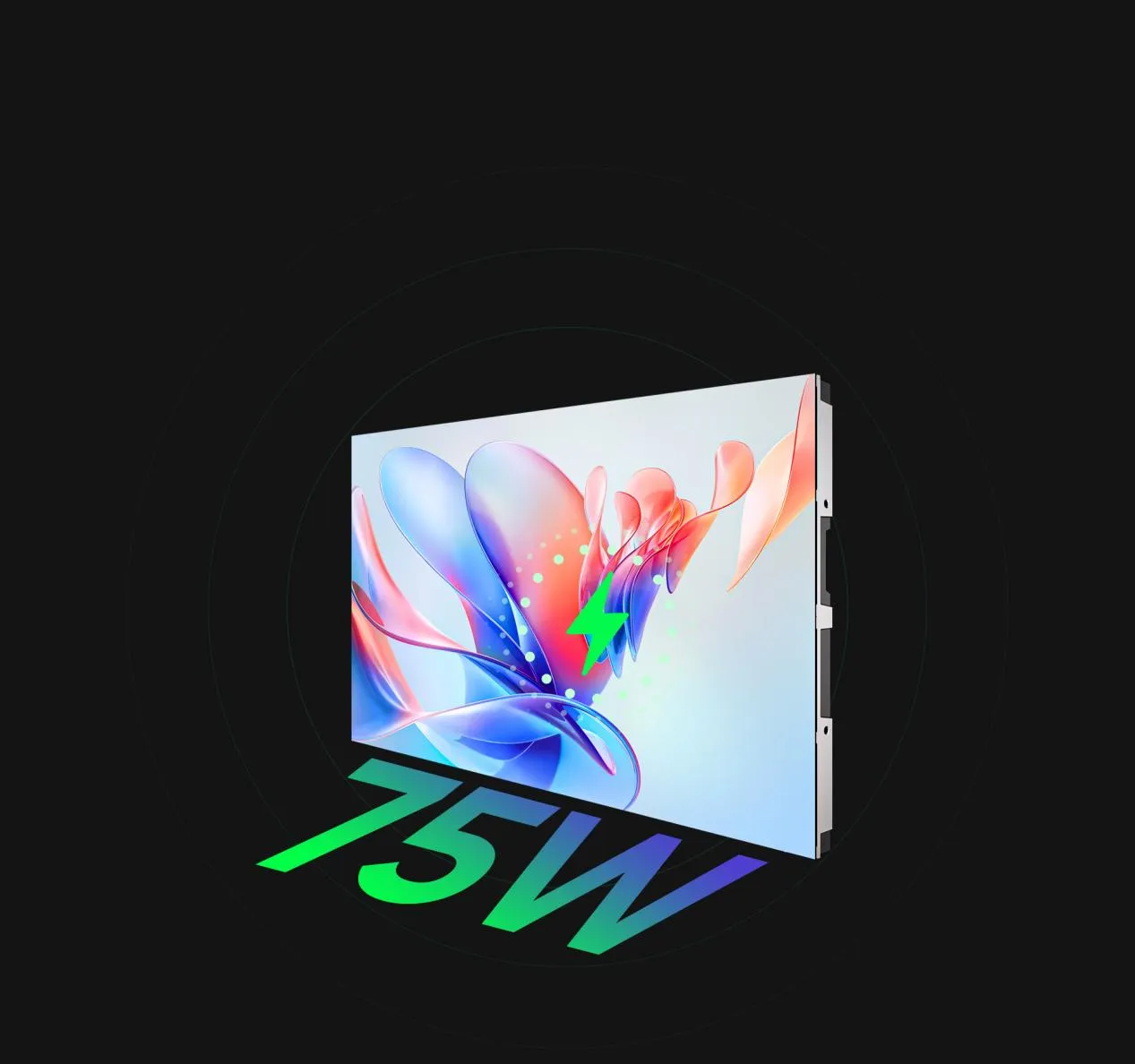

LM 2 Series combines optimized power management with efficient LED technology to reduce energy consumption while maintaining excellent visual performance. With maximum power consumption of only 75W, it provides a more sustainable solution for long-hour indoor operation.

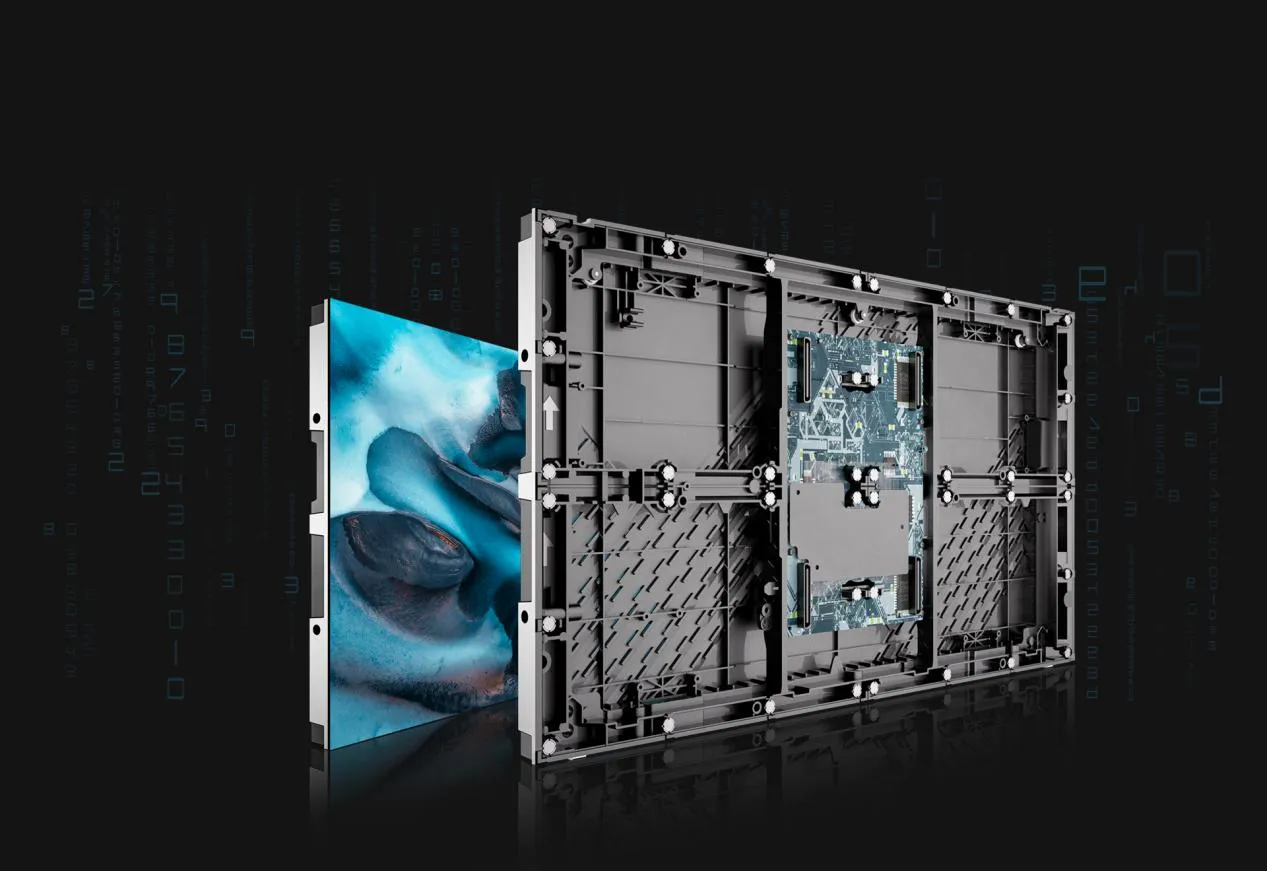

The automatic flash correction system reads uploaded calibration data and restores display parameters after module replacement. This helps maintain consistent brightness and color performance across the entire screen.
With a cabinet size of 600×337.5mm, LM 2 Series follows the widely used 16:9 visual ratio. The optimized proportion matches natural viewing habits, providing a wider field of view and a more comfortable experience.
Published specifications. Final values for your configuration are confirmed with your quote.
| Model | L121M 2 | L151M 2 | L181M 2 | L251M 2 |
|---|---|---|---|---|
| Pixel pitch (mm) | 1.25 | 1.5625 | 1.875 | 2.5 |
| Module Dimension (mm) | 300 × 168.75 | |||
| Cabinet Dimension (mm) | 600 × 337.5 | |||
| Material | Die-casting aluminum (cabinet)、Plastic (rear cover) | |||
| Weight/cabinet (Kg) | 3.5 | |||
| Refresh Rate (Hz) | 3840 | |||
| Viewing Angle | 160/140 | |||
