Modular Lightweight Indoor Video Wall
LM C3 Series combines advanced COB packaging technology with fine-pitch LED performance to deliver exceptional image quality, durability, and energy efficiency. Designed for professional indoor applications, it provides a reliable display solution with enhanced protection, seamless splicing, and simplified maintenance.

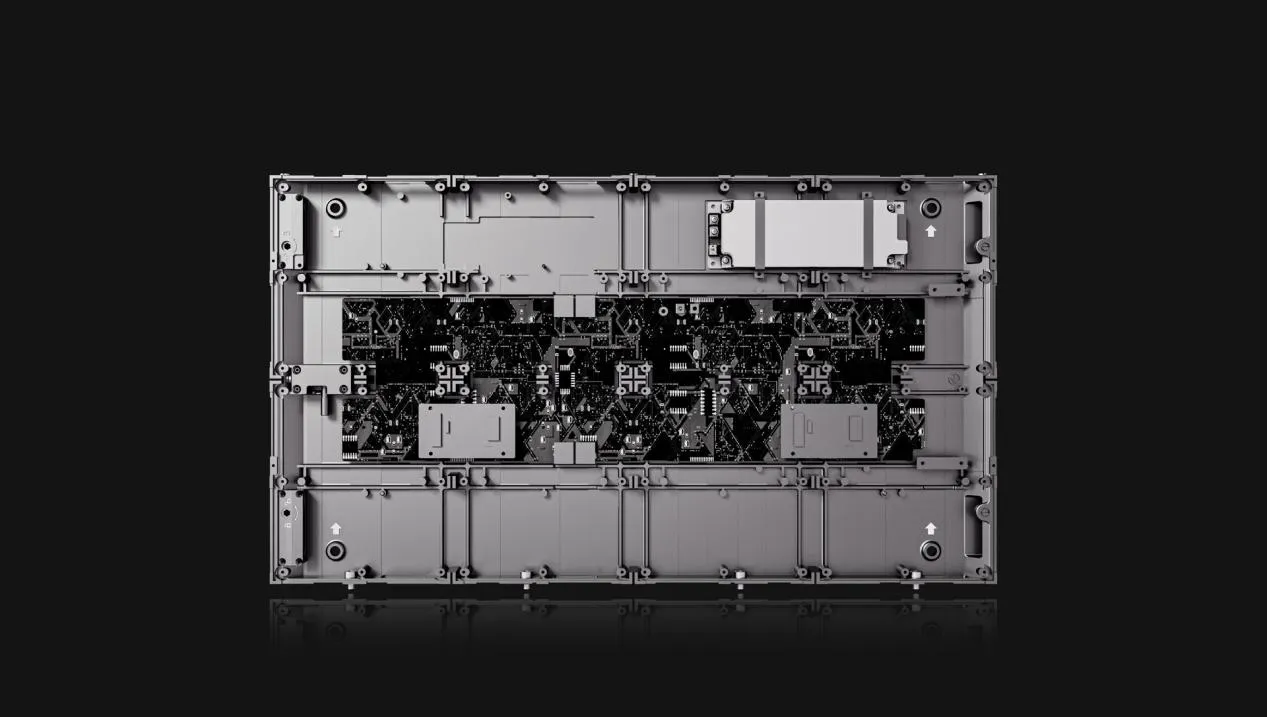

LM C3 Series adopts advanced flip-chip COB packaging technology, improving color consistency, display stability, and overall durability. The integrated chip design provides excellent visual performance while reducing structural complexity for professional indoor applications.

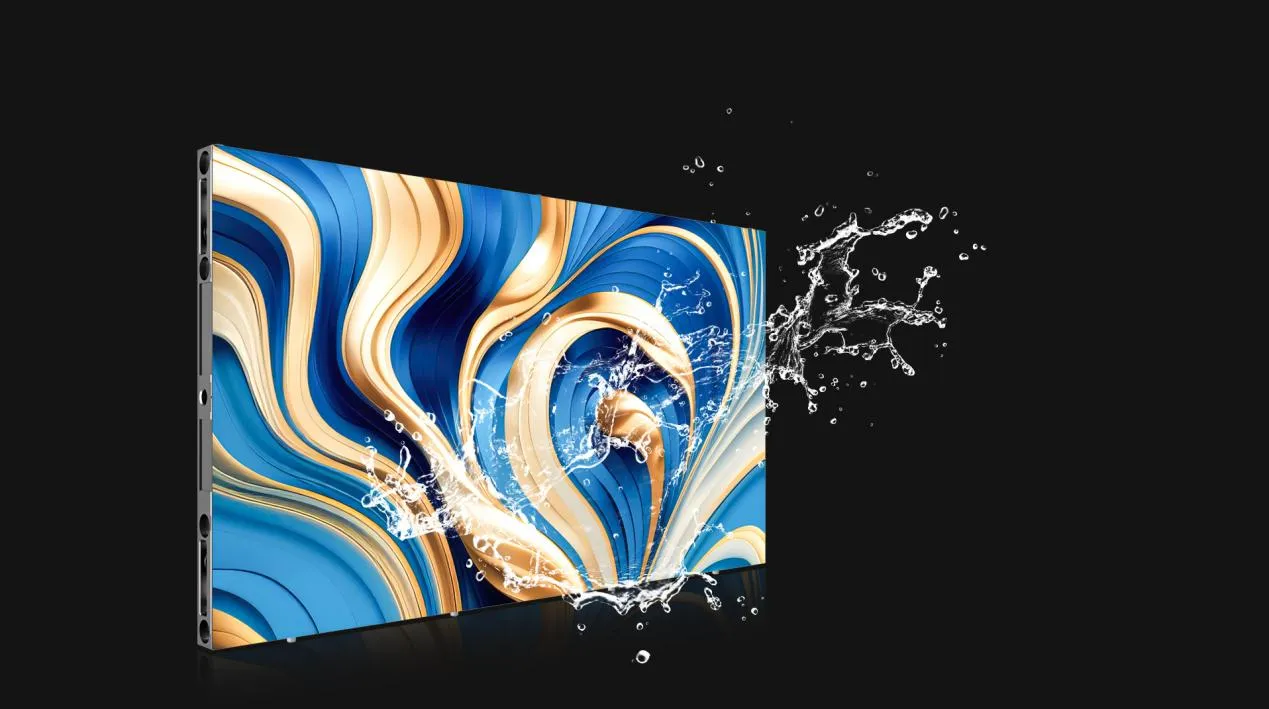

Featuring a protective surface packaging structure, LM C3 Series offers excellent resistance against dust, moisture, and scratches. The durable surface is easy to clean and maintain, helping extend product lifespan and maintain consistent display quality.

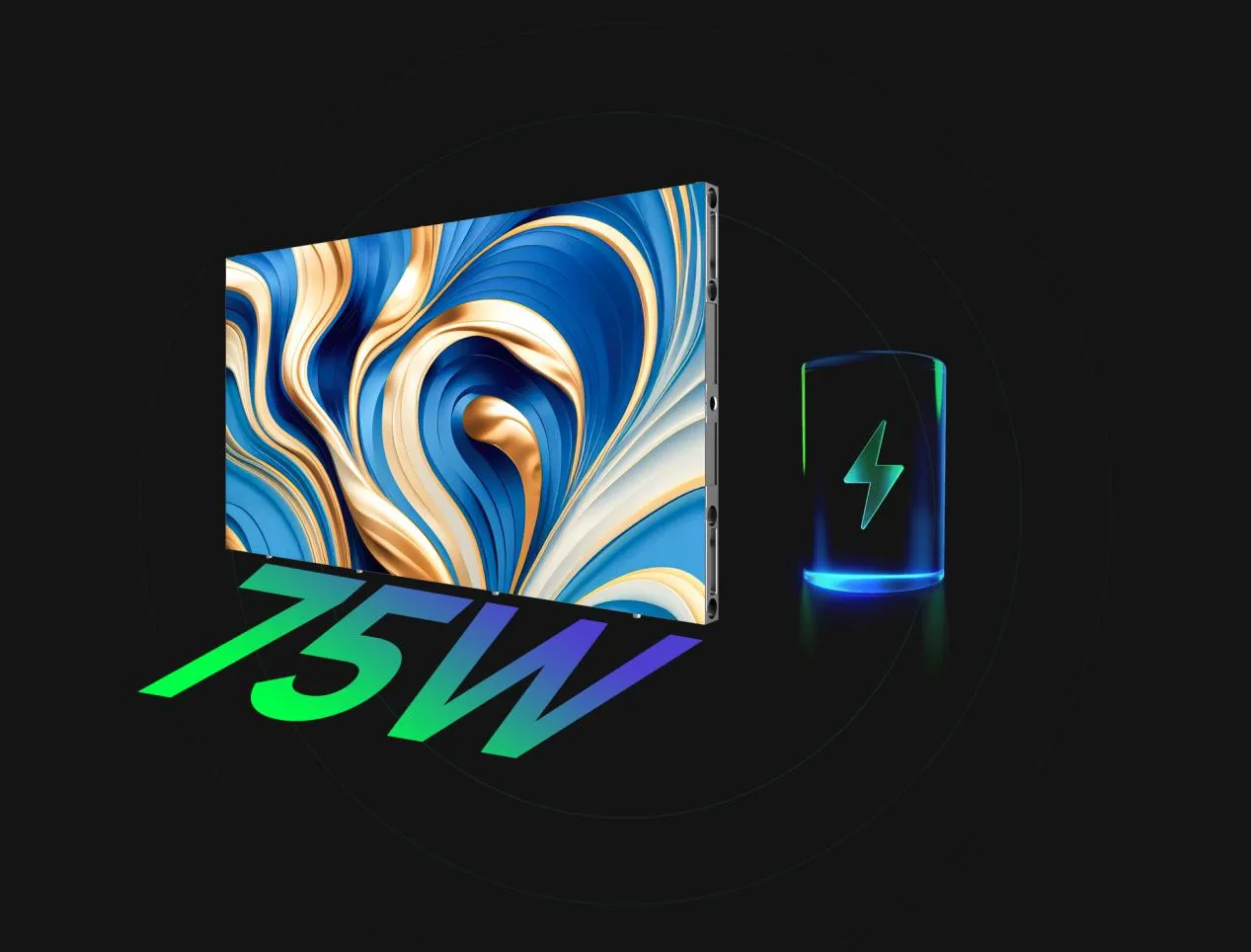

Designed with optimized power management technology, LM C3 Series achieves low power consumption while maintaining excellent brightness and image quality. With maximum power consumption of only 75W, it provides an efficient and environmentally friendly display solution for long-hour operation.

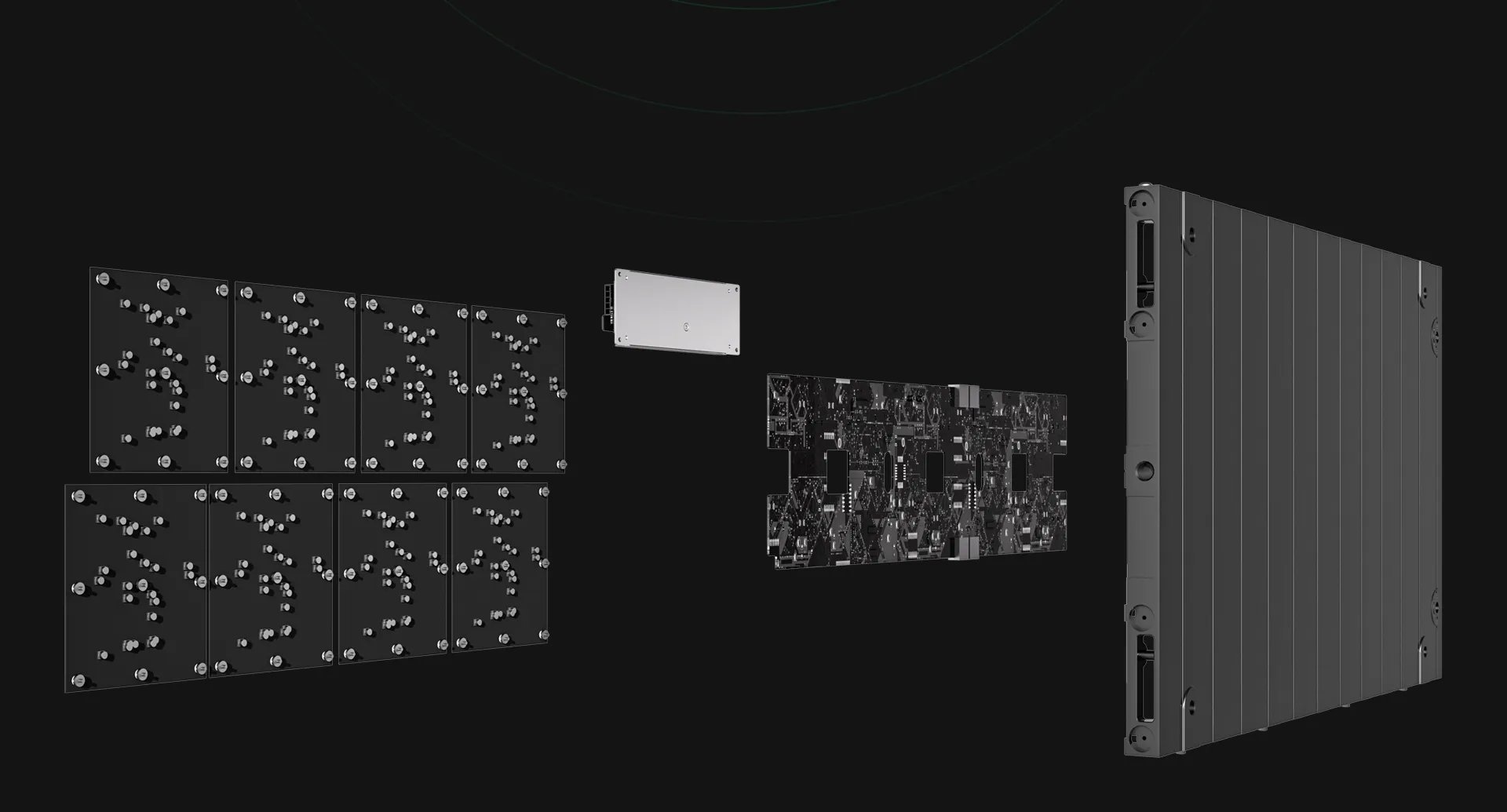

LM C3 Series features an innovative three-in-one integrated design combining the power supply, Hub card, and receiving card into one compact structure. This highly integrated solution simplifies system architecture while improving stability and reliability.

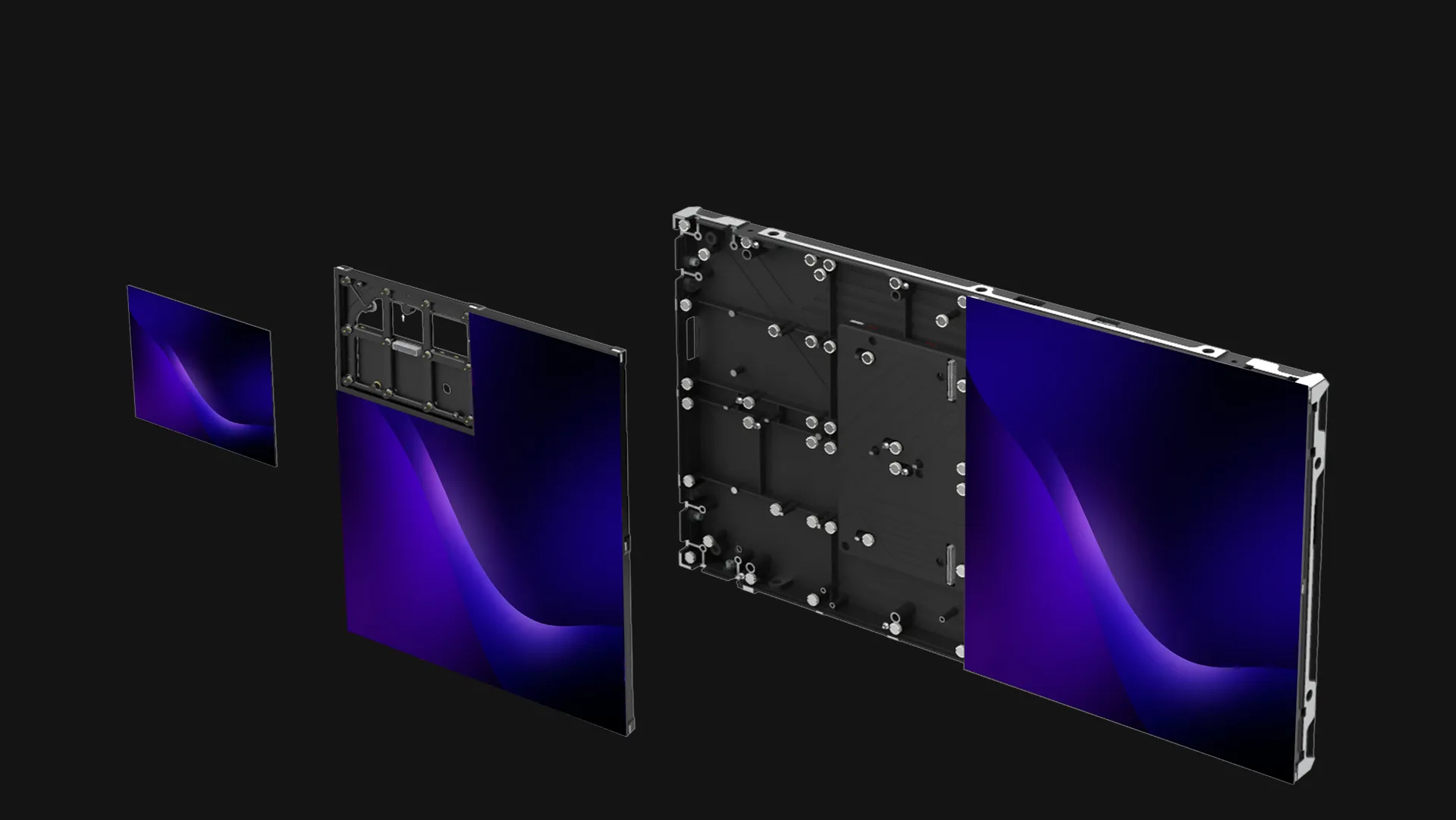

Built with lightweight die-cast aluminum modules weighing only 4kg, LM C3 Series achieves seamless splicing and improved cabinet flatness. The precision structure ensures a clean and consistent visual experience across the entire display.

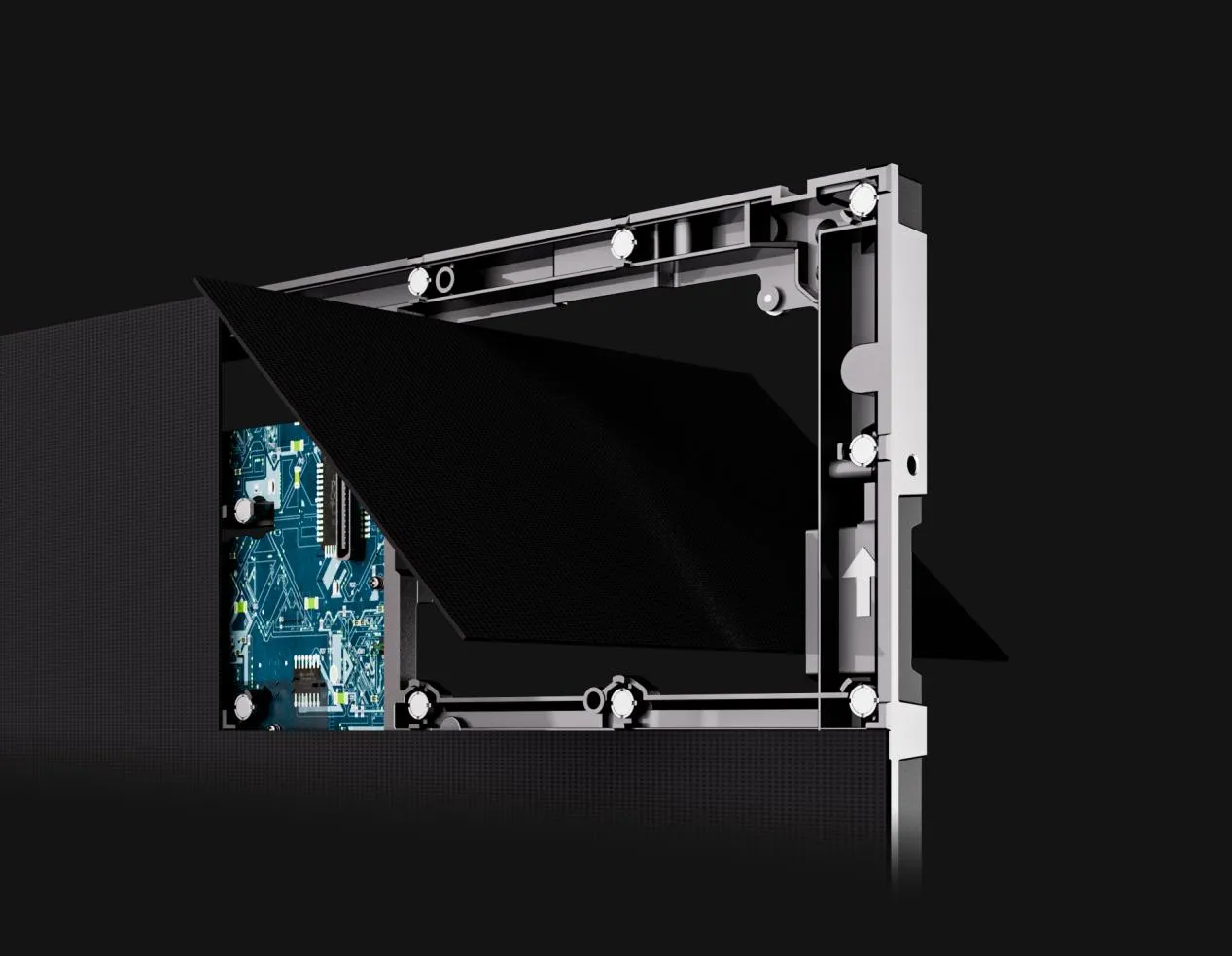

LM C3 Series supports full front maintenance with a vacuum magnetic suction module design. The quick-access structure simplifies module replacement and reduces maintenance time, making daily servicing more convenient.
Supporting multiple installation methods, LM C3 Series can adapt to different indoor environments and project requirements. Its flexible design provides more possibilities for customized LED display solutions.
Published specifications. Final values for your configuration are confirmed with your quote.
| Model | L071M C3 | L091M C3 | L121M C3 | L151M C3 |
|---|---|---|---|---|
| Pixel Pitch (mm) | 0.78 | 0.9375 | 1.25 | 1.5625 |
| Module Size (mm) | 600 × 337.5 × 29 | |||
| Refresh Rate (Hz) | 600 | |||
| IP Rate | IP50/IP30 | |||
| Cabinet Material | Die-cast aluminum | |||
| Contrast | 20000: 1 | |||
