Slim Aluminum Seamless Video Wall
LM PRO Series is an ultra-slim fine-pitch indoor LED display designed for professional fixed installation applications requiring efficient deployment, reliable operation, and premium visual performance. With an ultra-thin cabinet design, lightweight structure, and advanced front maintenance system, it provides a practical solution for large indoor spaces.
LM PRO Series features an ultra-slim cabinet design with a thickness of only 28mm and a lightweight structure of 4.1kg per cabinet. The compact design simplifies transportation and installation while creating a cleaner appearance for professional indoor environments.
Equipped with high refresh rate, 14-bit grayscale processing, and wide viewing angles, LM PRO Series delivers smooth motion, accurate image details, and comfortable viewing from different positions. The automatic color correction technology helps maintain consistent display performance.

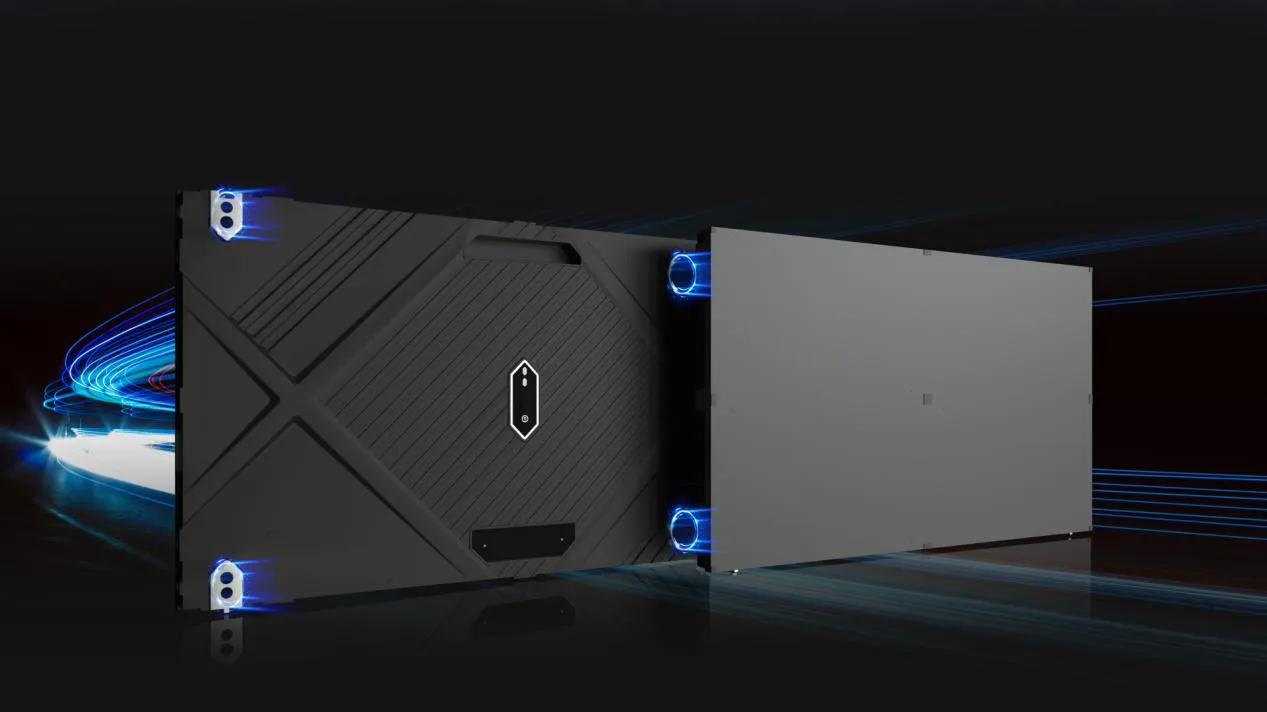

LM PRO Series adopts a vacuum magnetic suction front maintenance design, allowing quick module removal and replacement. The simplified maintenance process helps reduce service time and improves operational efficiency.
Supporting dual backup solutions for both power and signal, LM PRO Series helps maintain stable operation during unexpected situations. The redundant design reduces the risk of interruptions and ensures continuous display performance.

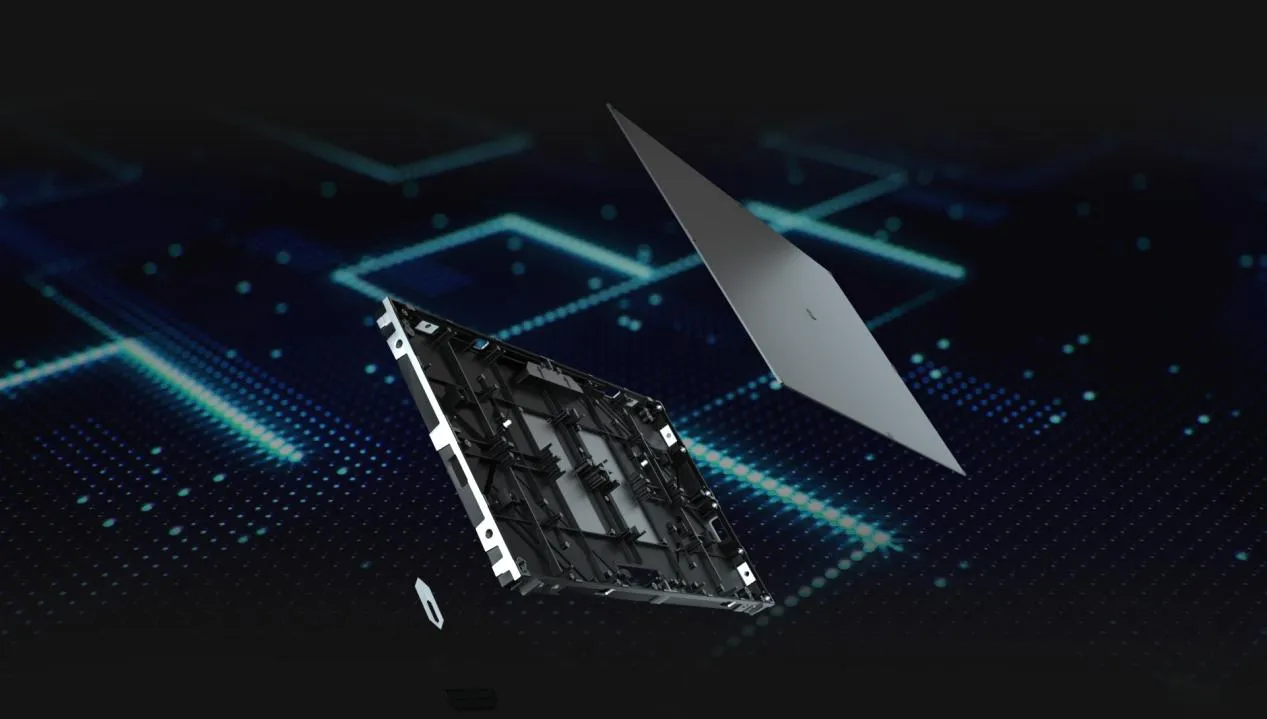

The hidden wiring design integrated into the cabinet structure creates a cleaner appearance while simplifying installation. It eliminates complex external cable arrangements and improves overall system aesthetics.

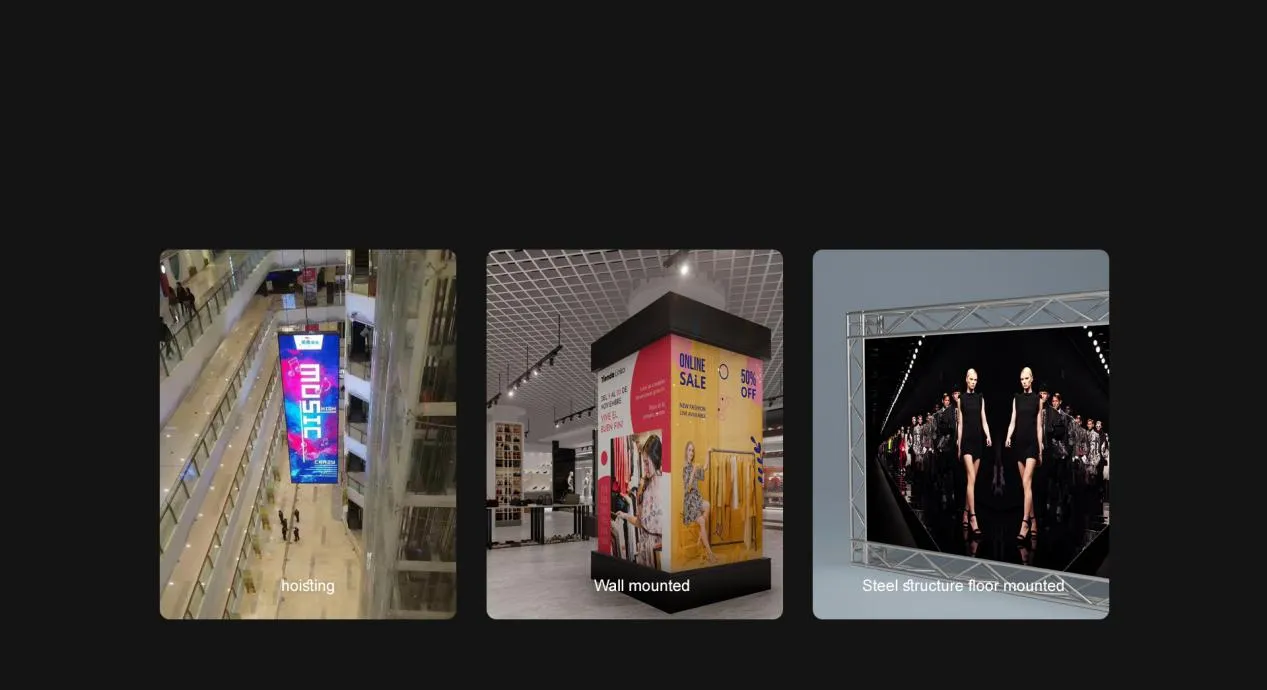

LM PRO Series supports multiple installation methods, including hanging, wall mounting, and steel structure floor mounting. The flexible installation design allows it to adapt to different architectural spaces and project requirements.
With excellent viewing performance and reliable operation, LM PRO Series is ideal for large indoor applications including lecture halls, auditoriums, stages, and conference spaces where clear visuals and stable performance are essential.
Published specifications. Final values for your configuration are confirmed with your quote.
| Model | L091M Pro | L121M Pro | L151M Pro | L181M Pro | L251M Pro |
|---|---|---|---|---|---|
| Pixel Pitch | 0.9375 | 1.25 | 1.5625 | 1.875 | 2.5 |
| Cabinet Size | 600mm×337.5mm×28mm | ||||
| Cabinet Material | Die-casting Aluminum | ||||
| Weight | 4.1kg | ||||
| Refresh Rate | 2880Hz~3840Hz | ||||
| Viewing Angle | H160°/V140° | ||||
