Ultra-Slim Smart Conference Terminal
F-Board4 XT combines a triple-fold LED display with an ultra-wide 21:9 format and integrated collaboration features, giving professional spaces more room for presentations and multi-source content. Its 178-inch screen can display up to four sources at once, while up to nine devices can connect wirelessly for content sharing. With a built-in Android system, adjustable height, and collision sensing, the XT Series brings display, collaboration, and everyday operation together.

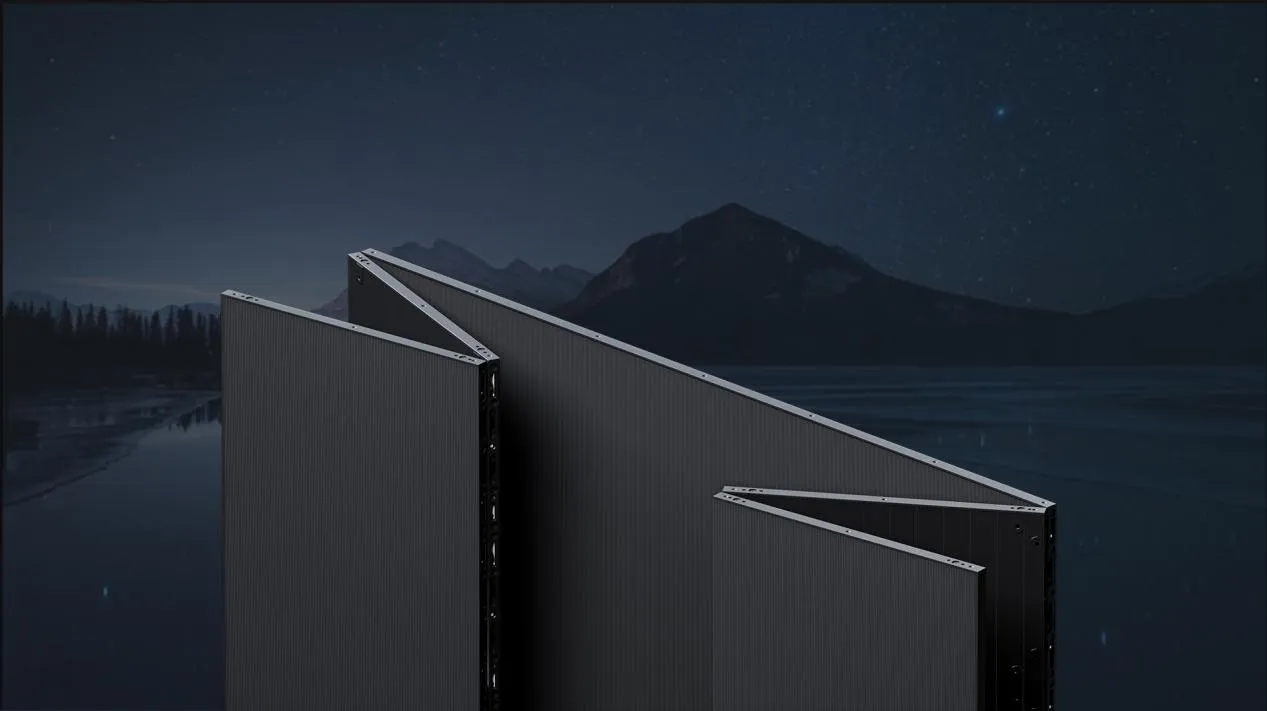

The F-Board4 XT features a dual triple-fold structure that allows the display to adapt to different spaces and setup requirements. The flexible folding design makes the screen easier to transport and position, while giving users more freedom to configure the display for professional applications.

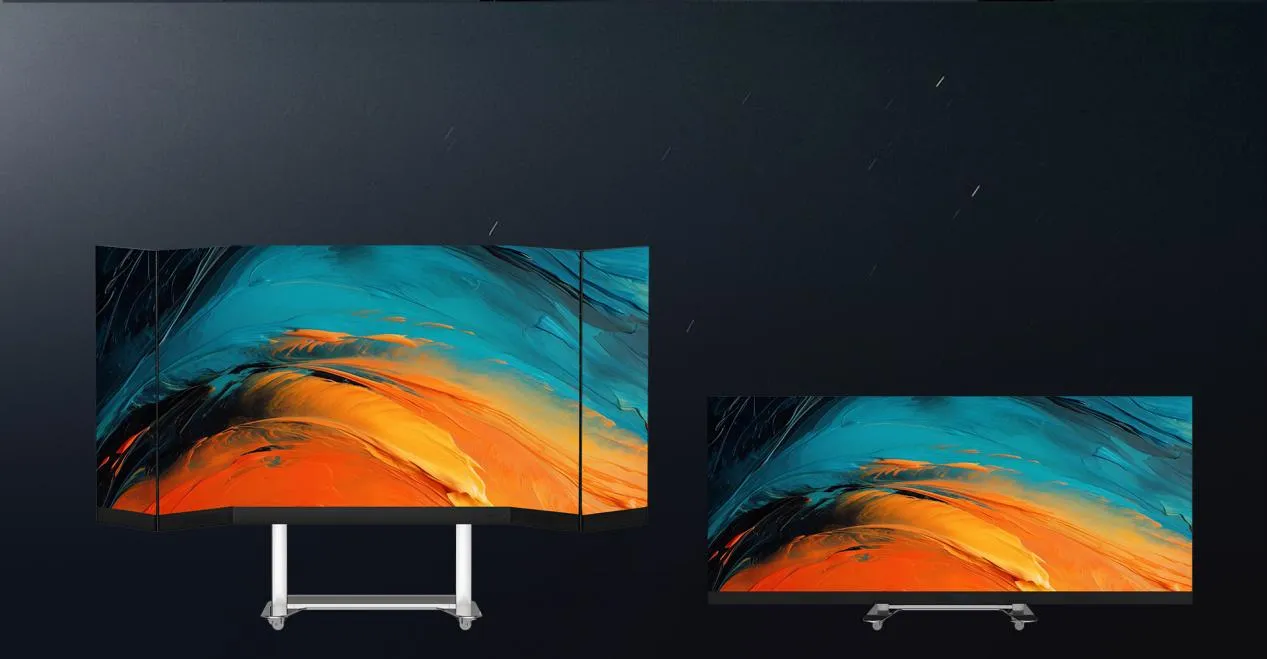

The built-in lifting system provides up to 65 cm of height adjustment, allowing the screen to be positioned at a comfortable viewing height. A collision sensor detects unexpected external force and automatically stops the lifting movement, helping protect both the display and people nearby during operation and transportation.

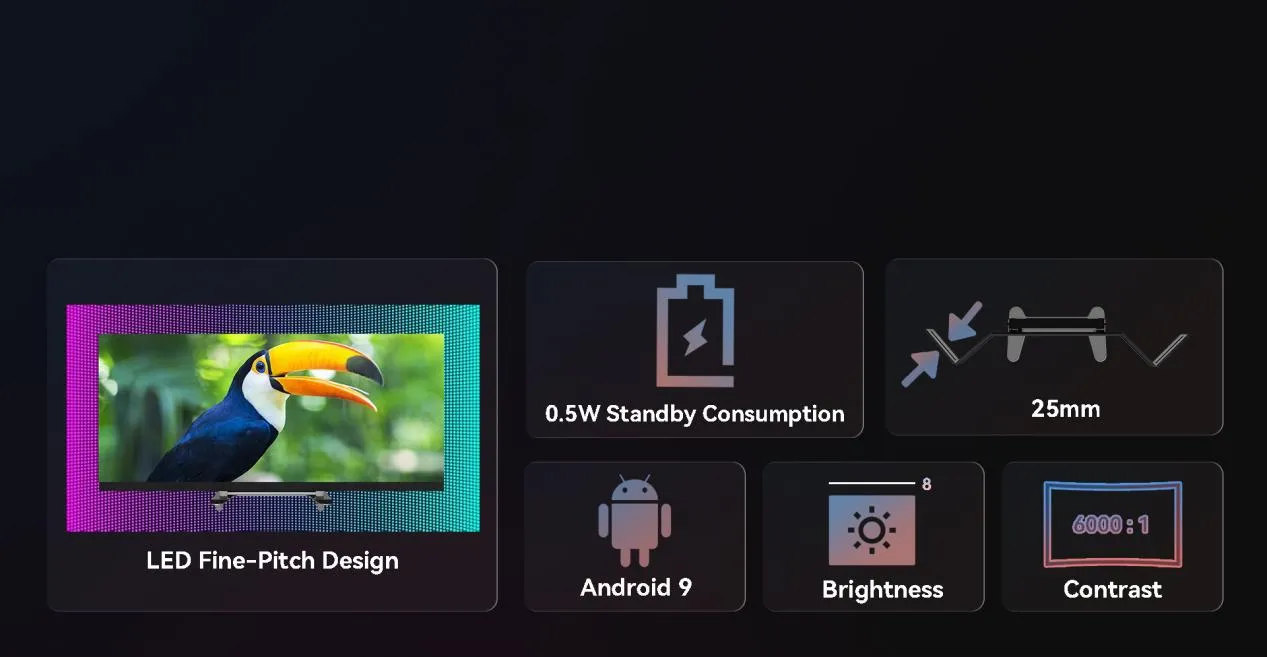

F-Board4 XT combines the LED display, Android system, and essential control functions into one integrated solution. With a slim 25 mm profile, 8-level brightness adjustment, and a 6000:1 contrast ratio, it provides a clear visual experience.

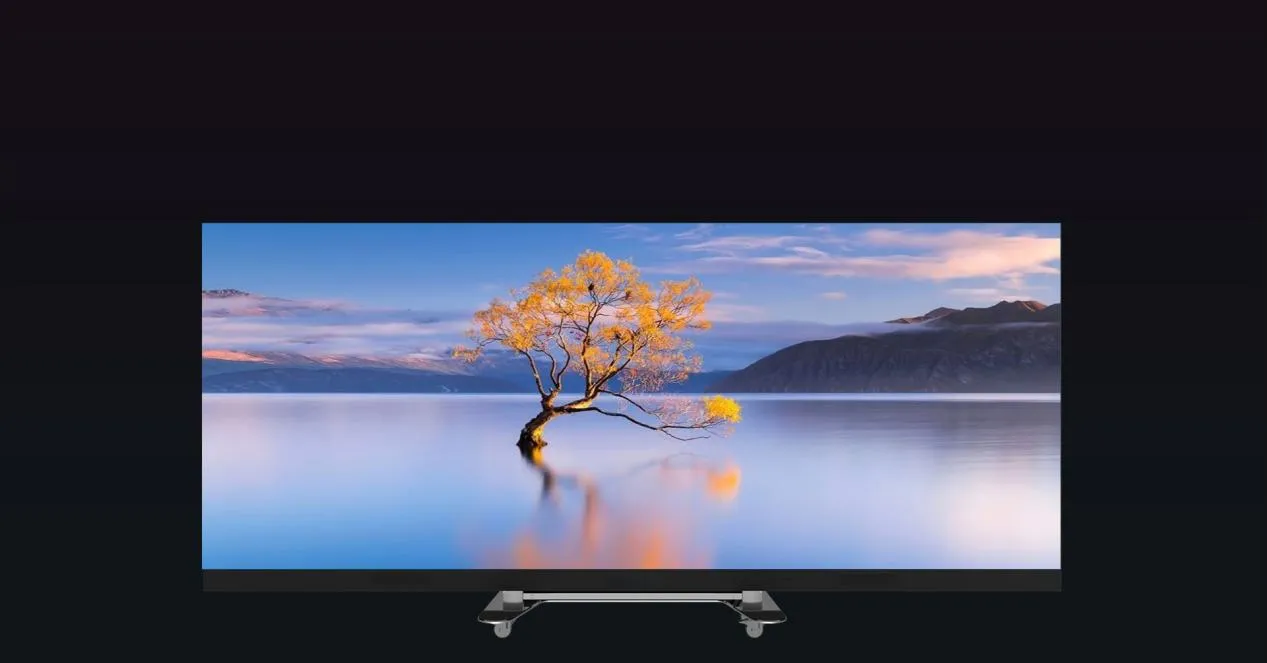

The 178-inch 21:9 screen provides a wider canvas for presentations, video conferences, data visualization, and other content that benefits from a panoramic layout. The ultra-wide format allows more information to be shown side by side, making better use of the screen area while keeping the overall presentation clear and easy to follow.

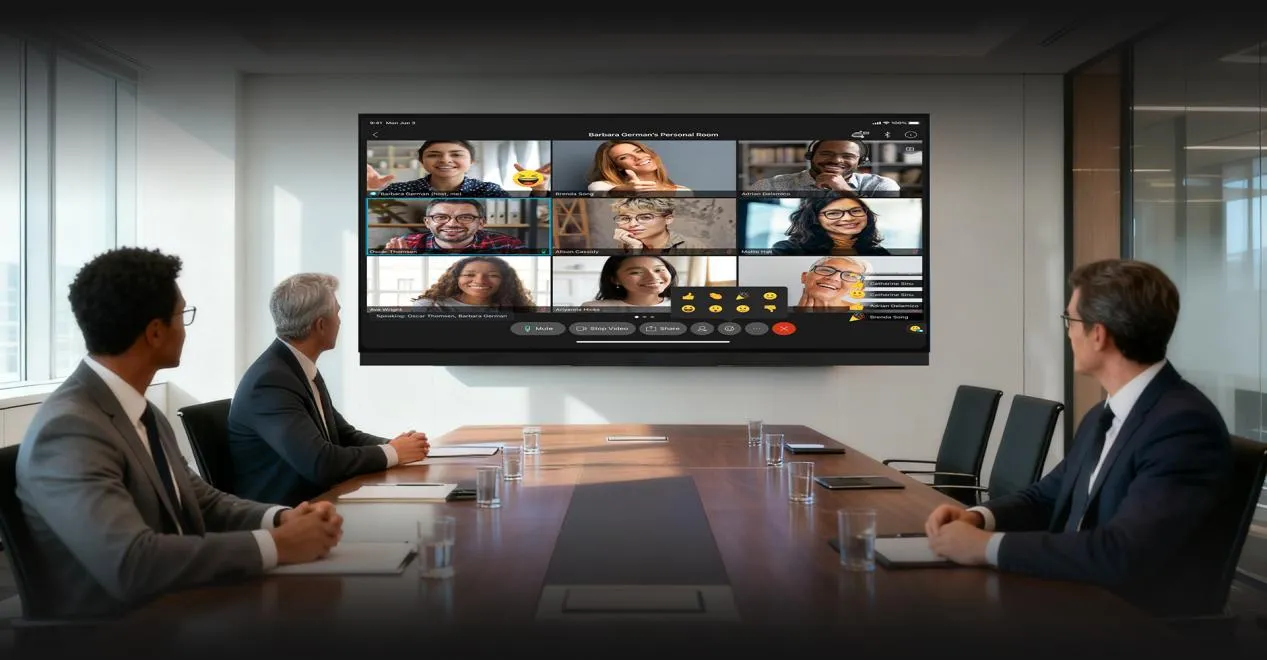

Board4 XT supports multi-channel signal processing with PIP and PBP modes, allowing up to four signal sources to be displayed at the same time. It also supports wireless projection from up to nine devices, making it easier for teams to use during collaborative sessions.
F-Board4 XT supports multi-channel signal processing with PIP and PBP modes, allowing up to four signal sources to be displayed at the same time. It also supports wireless projection from up to nine devices, making it easier for teams to share presentations, documents, video, and other content during collaborative sessions.
Published specifications. Final values for your configuration are confirmed with your quote.
| Product Model | F151B4S-178 |
|---|---|
| Pixel Pitch | 1.5625 |
| Resolution | 2688 × 1080 |
| Screen Display Size (W*Hmm) | 4200 × 1687.5mm |
| Color Processing Depth | 14bit |
| Refresh Rate (Hz) | 3840 |
| Contrast | 6000:1 |
| Horizontal/Vertical Viewing Angles (H/V) | 160°/160° |
Share the size, the room and the timeline — we’ll come back with the right display, a layout drawing and a quote.
Get a quote
