Interactive Educational & Corporate Terminal
E-Board4 Std combines fine-pitch LED technology with a sectional all-in-one design, delivering a flat, detailed display while keeping installation straightforward. With 110% NTSC wide color gamut and 2K resolution, it produces rich colors and clear images for professional presentations and visual content. Available in 135-inch, 163-inch, and 216-inch sizes, E-Board4 Std can be configured to suit different conference rooms and professional spaces.

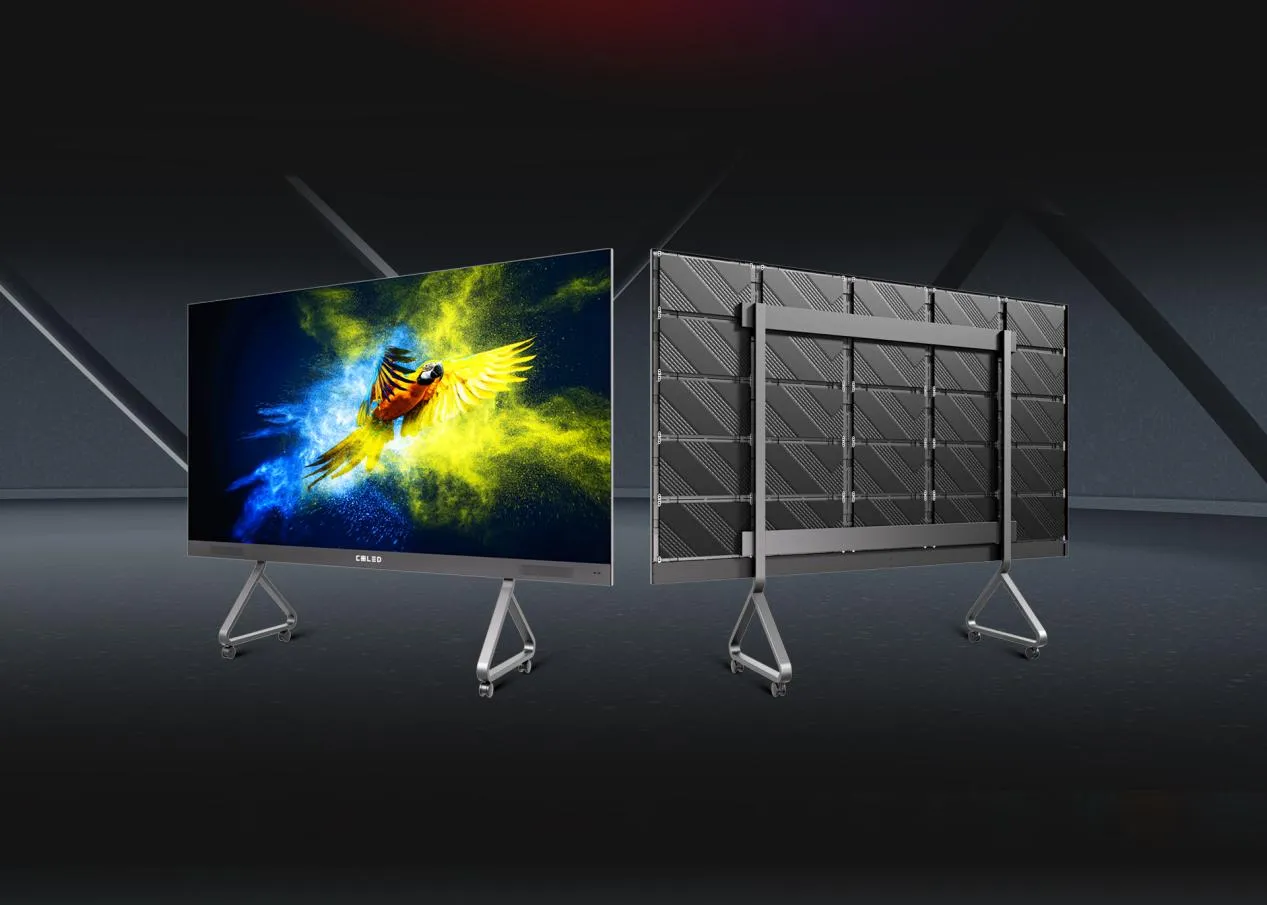

E-Board4 Std features a three-in-one sectional structure designed for a precise and stable installation. The carefully engineered frame helps maintain a high level of flatness across the display, creating a clean and consistent surface for presentations, videos, and other visual content.
With a 110% NTSC wide color gamut and 2K high-definition resolution, E-Board4 Std delivers rich colors and detailed images for professional visual applications. The expanded color range brings greater depth and vibrancy to content, while 2K resolution keeps content clear and easy to view.

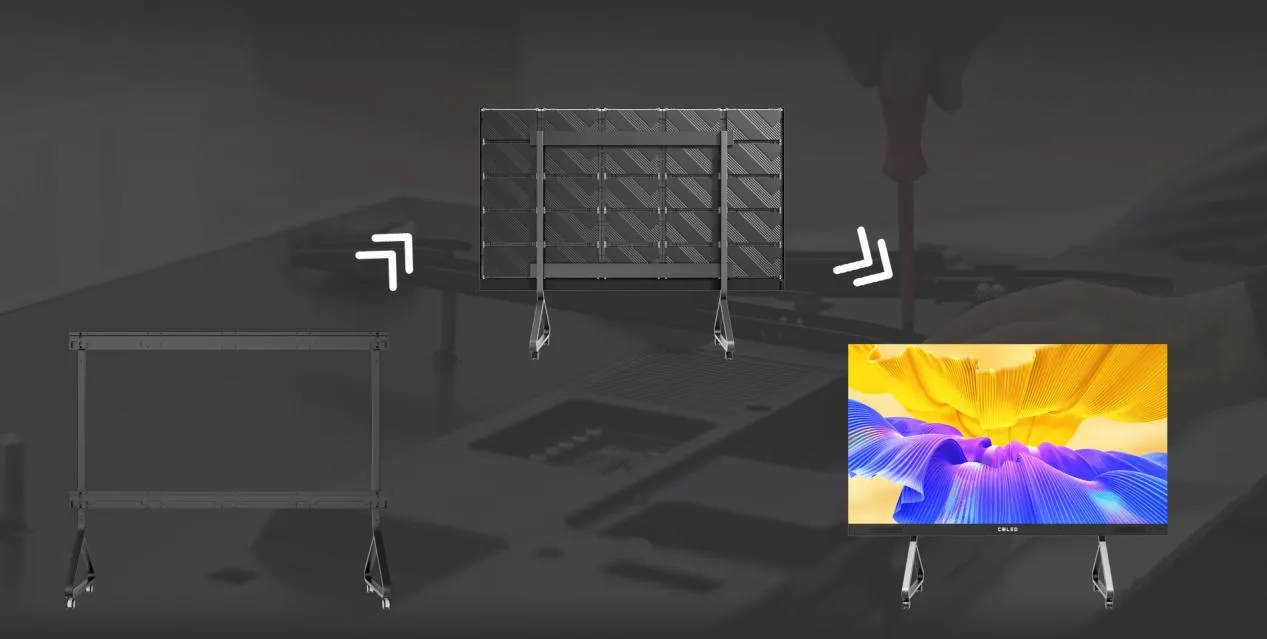

E-Board4 Std is designed to simplify on-site installation and removal. With a streamlined sectional structure, the display can be installed in around 30 minutes, helping reduce setup time and making it easier to deploy the system across different professional environments.

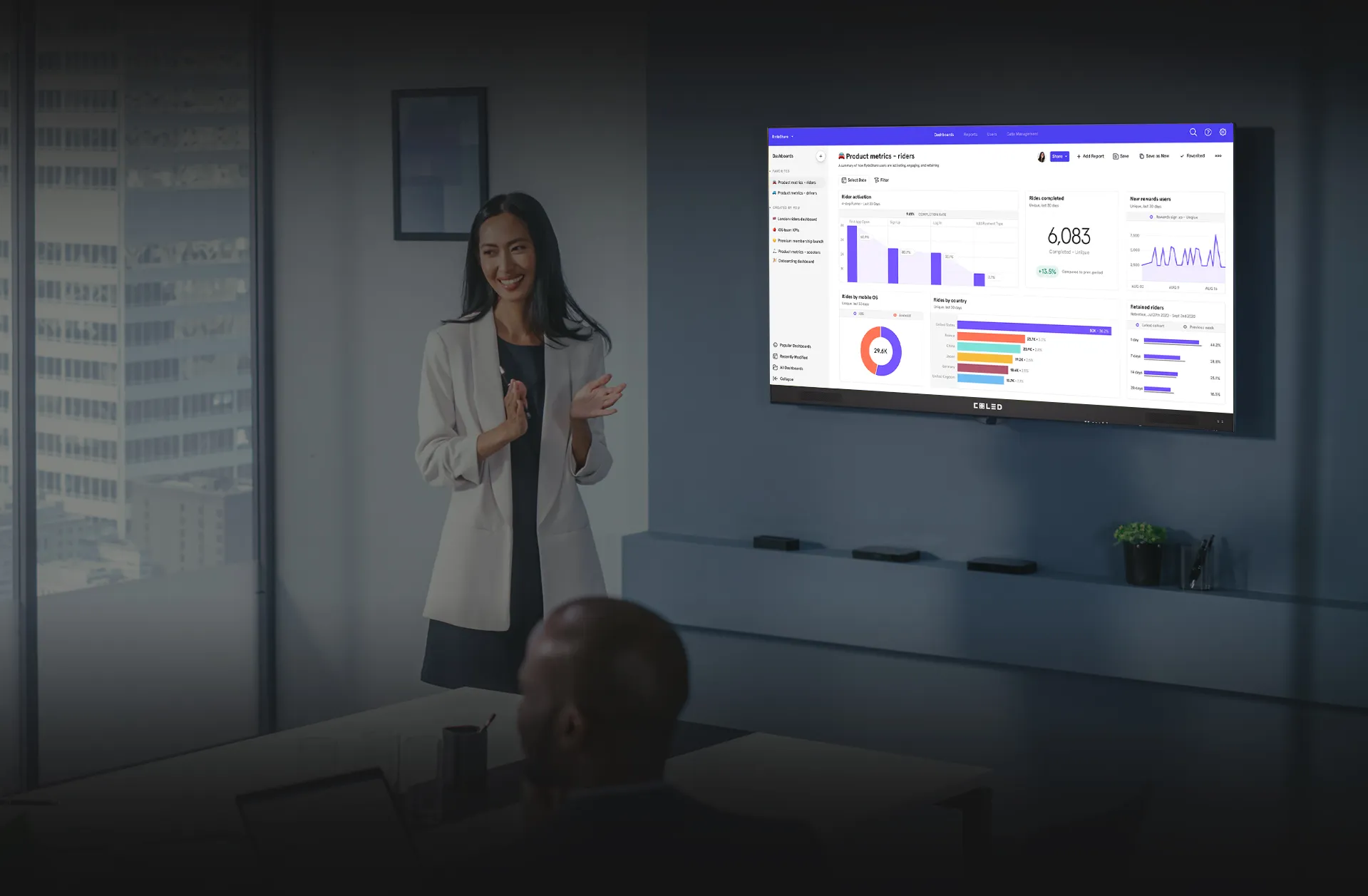

E-Board4 Std is designed to address the practical needs of conference rooms where space, viewing clarity, and installation efficiency all matter. Its fine-pitch LED display provides a large and detailed visual canvas without the limitations of conventional display solutions.

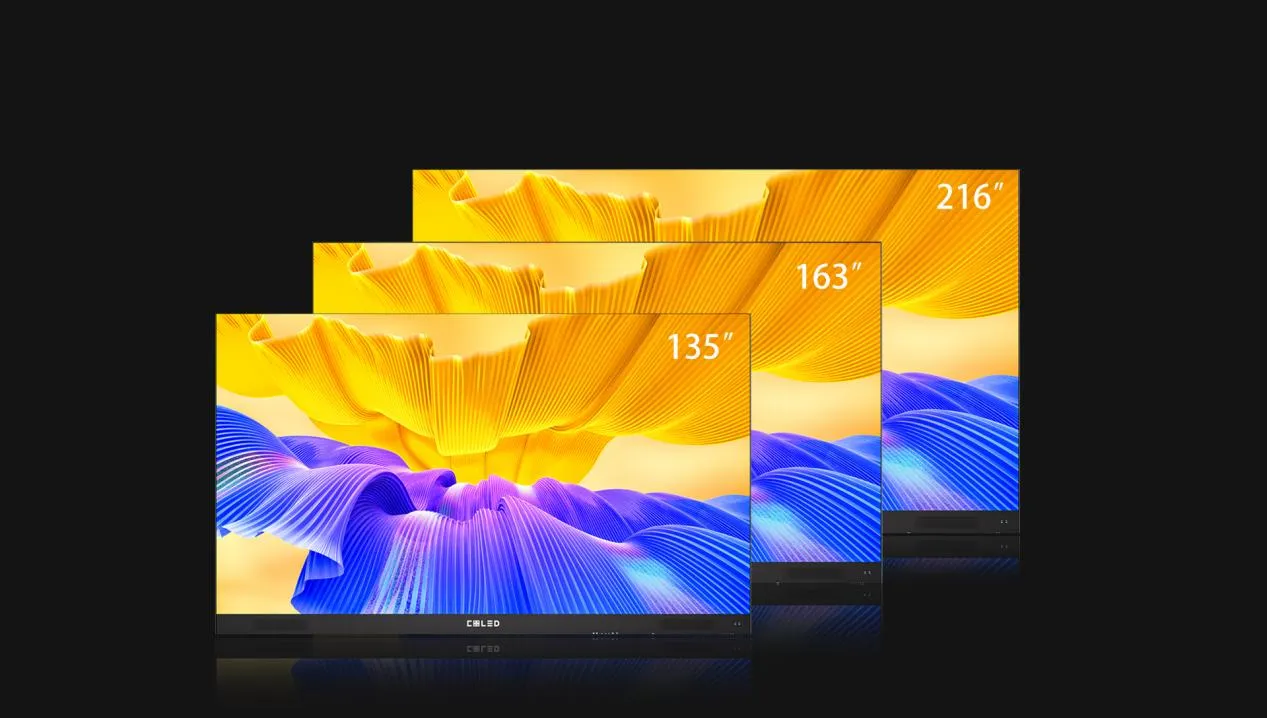

E-Board4 Std is available in 135-inch, 163-inch, and 216-inch sizes, giving users more flexibility when choosing the right display for their space. Depending on the room size and viewing distance, the different screen options can accommodate a range of conference rooms and professional environments. Wall-mounting and mobile bracket options provide additional flexibility for installation.
Published specifications. Final values for your configuration are confirmed with your quote.
| Model | E121B4S-108 | E151B4S-135 | E181B4S-163 | E251B4S-216 |
|---|---|---|---|---|
| Pixel pitch (mm) | 1.25 | 1.5625 | 1.875 | 2.5 |
| Resolution (W*H) | 1920 × 1080 | |||
| Color gamut | ≥110% NTSC | |||
| Refresh Rate (Hz) | 3840 | |||
| Contrast | 6000:1 | |||
| Viewing Angle (H/V) | 160°/140° | |||
