Commercial Smart Collaboration Terminal
X-Board 4 goes beyond traditional LED displays by bringing high-definition visuals, Android, video conferencing, IoT control, and multi-source collaboration into one integrated system. Available in four screen sizes from 108 to 216 inches, it can be configured for different spaces and viewing requirements. With flexible installation options and multiple display modes, X-Board 4 provides a versatile solution.
X-Board 4 brings the key functions of a modern digital workspace into one integrated LED display. It combines fine-pitch LED technology, 2K/4K high-definition visuals, Android, video conferencing, IoT control, and more, reducing the need for separate devices while keeping everyday operation simple and streamlined.
Powered by advanced AI image processing, hyperchromatic and hyperimage technologies, X-Board 4 supports 2K/4K HDR content for richer colors, finer details, and more natural-looking images. Whether displaying presentations, videos, graphics, or other high-resolution content, it delivers a clear and engaging visual experience.

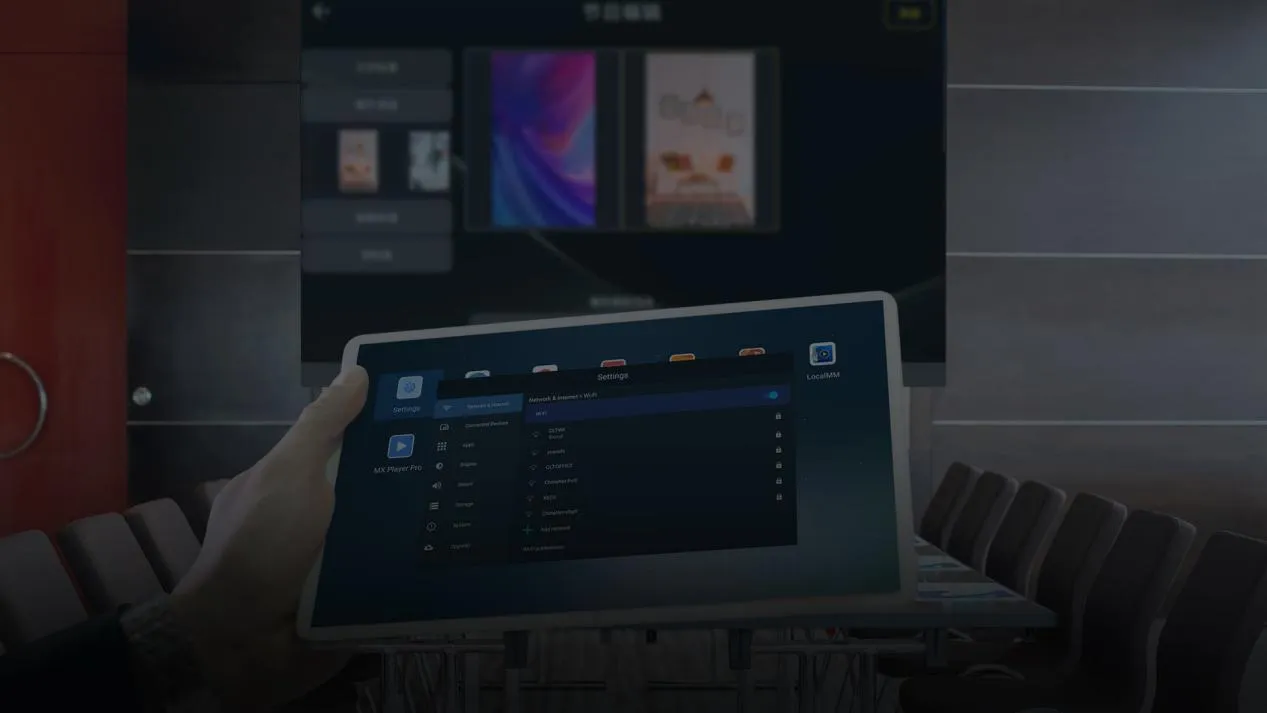

X-Board 4 is available in 108-inch, 135-inch, 163-inch, and 216-inch configurations, making it easier to choose the right screen size for different rooms and viewing distances. From compact meeting spaces to large conference rooms and commercial environments, the range provides greater flexibility without changing the overall all-in-one concept.

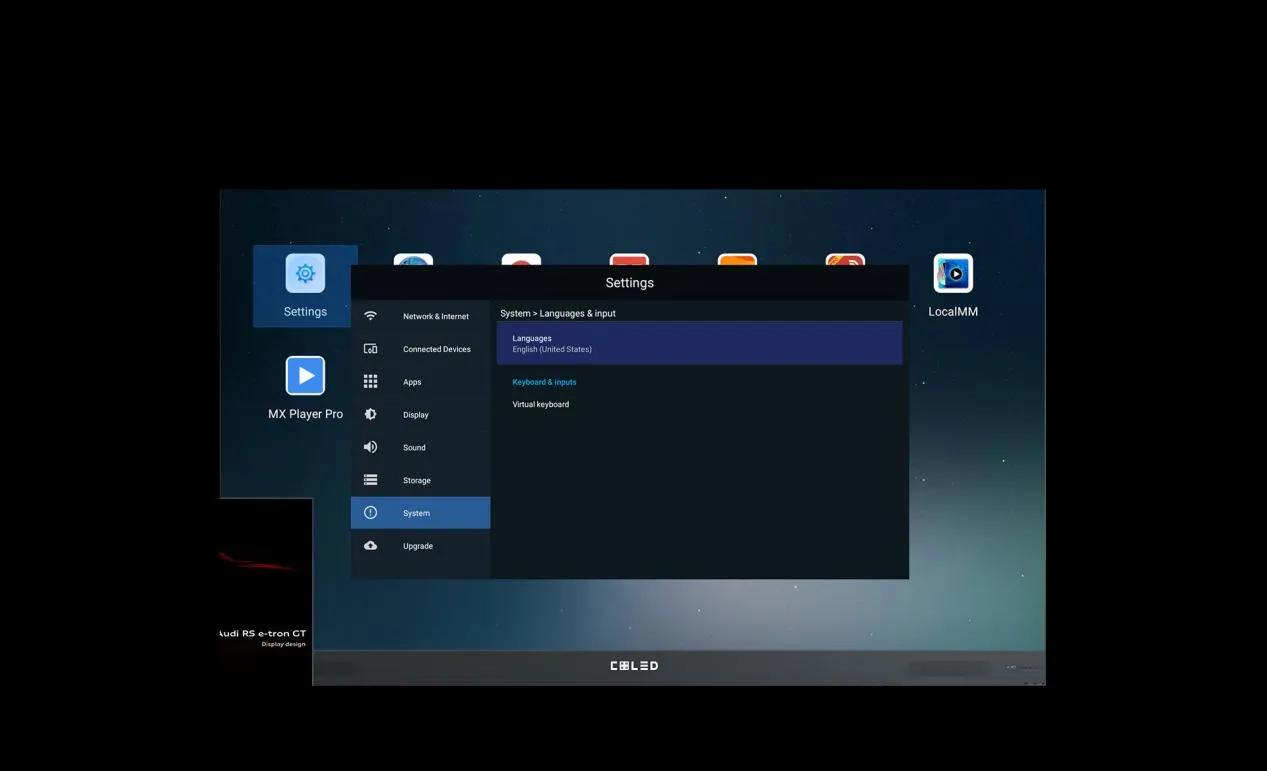

X-Board 4 supports PIP and PBP modes, allowing up to four signal sources to be displayed simultaneously. Up to nine devices can also connect wirelessly for screen sharing, making it easier to present different content, compare information, and collaborate from a single display.

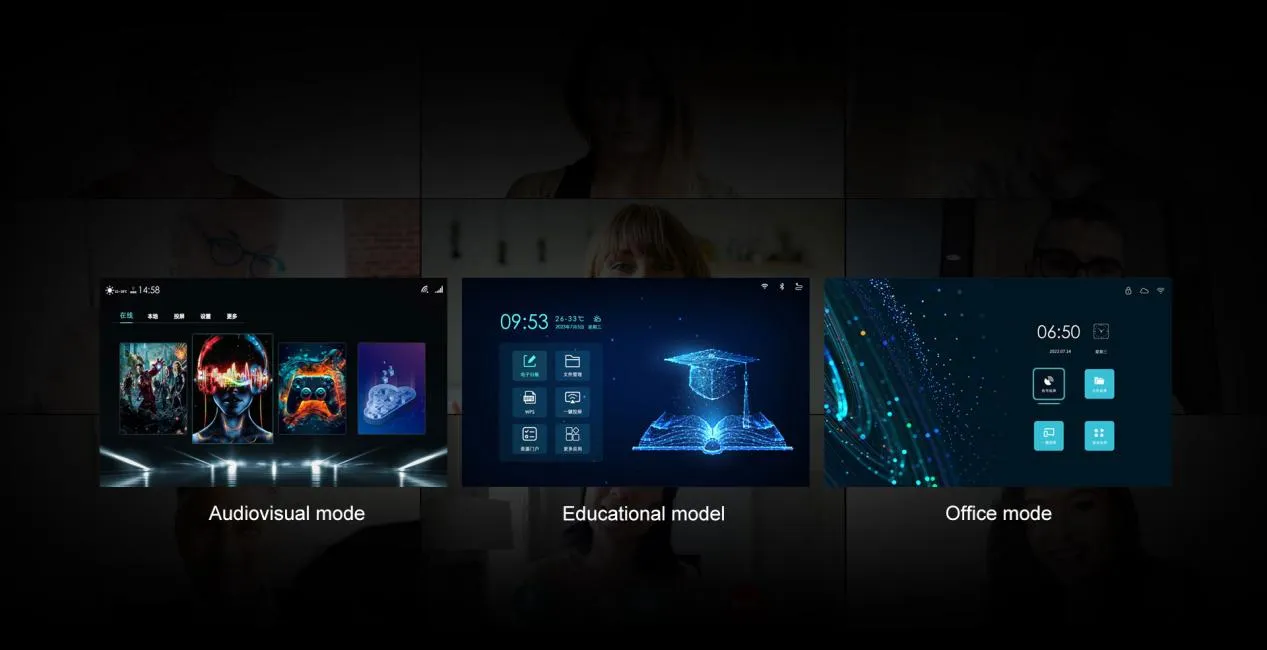

X-Board 4 offers multiple display modes that can be adjusted according to different content and usage requirements. Whether used for presentations or collaborative work, users can switch between different display configurations to create a setup that fits the task at hand.

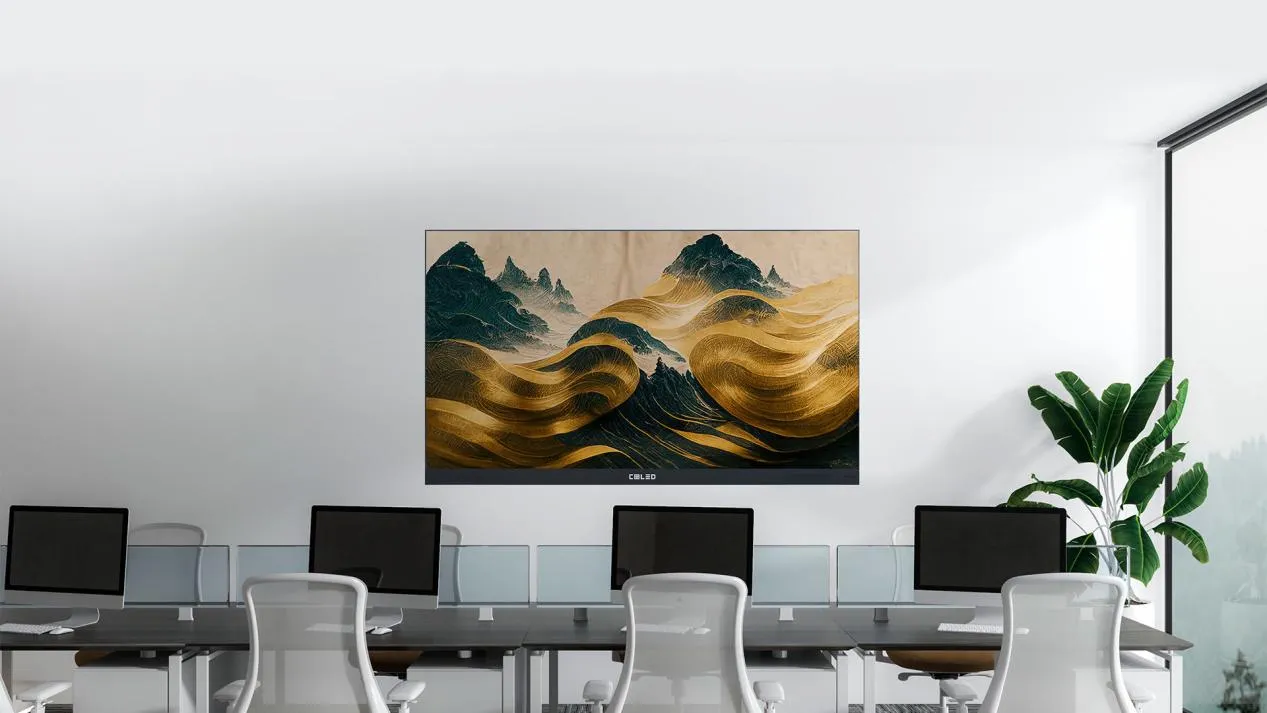

X-Board 4 supports both wall-mounted and floor-standing installation, giving users more freedom to configure the display according to the space. Whether integrated into a meeting room wall or positioned as a standalone display, it can adapt to different indoor layouts and installation requirements.
Published specifications. Final values for your configuration are confirmed with your quote.
| Model | X121B4S-108 | X151B4S-135 | X181B4S-163 | X251B4S-216 | X121B4S-216 |
|---|---|---|---|---|---|
| Pixel Pitch | 1.25mm | 1.5625mm | 1.875mm | 2.5mm | 1.25mm |
| Resolution | 1920 × 1080 | 1920 × 1080 | 1920 × 1080 | 1920 × 1080 | 3840 × 2160 |
| Screen Size (W*H/mm) | 2400 × 1350 | 3000 × 1687.5 | 3600 × 2025 | 4800 × 2700 | 4800 × 2700 |
| Refresh Rate (Hz) | 2880-3840 | ||||
| Contrast Ratio | 6000:1 | ||||
| Viewing Angle (H/V) | 160°/160° | ||||
