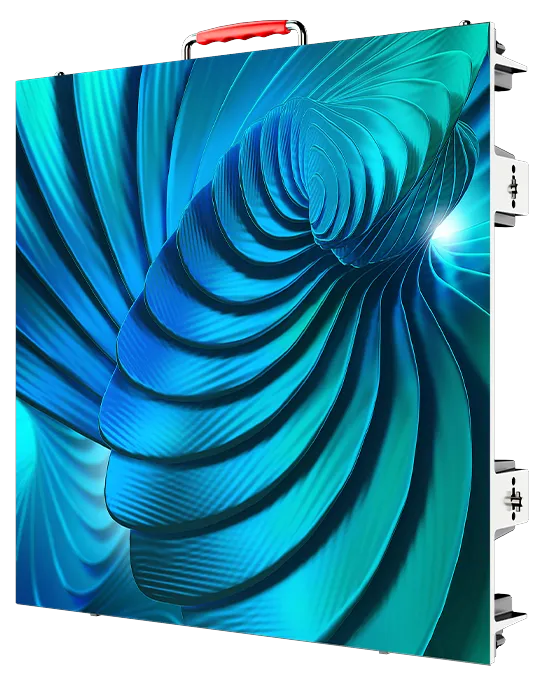

High-Precision Touring Stage LED Screen
R2 Series is designed for rental applications that demand flexibility, efficiency, and reliable performance. Combining a lightweight structure with high-quality visual performance, the series supports both indoor and outdoor environments with different brightness options. Its fast assembly design, full front and rear maintenance, multiple protection features, and energy-efficient operation make it an ideal choice for stages, events, auditoriums, and large-scale temporary installations.

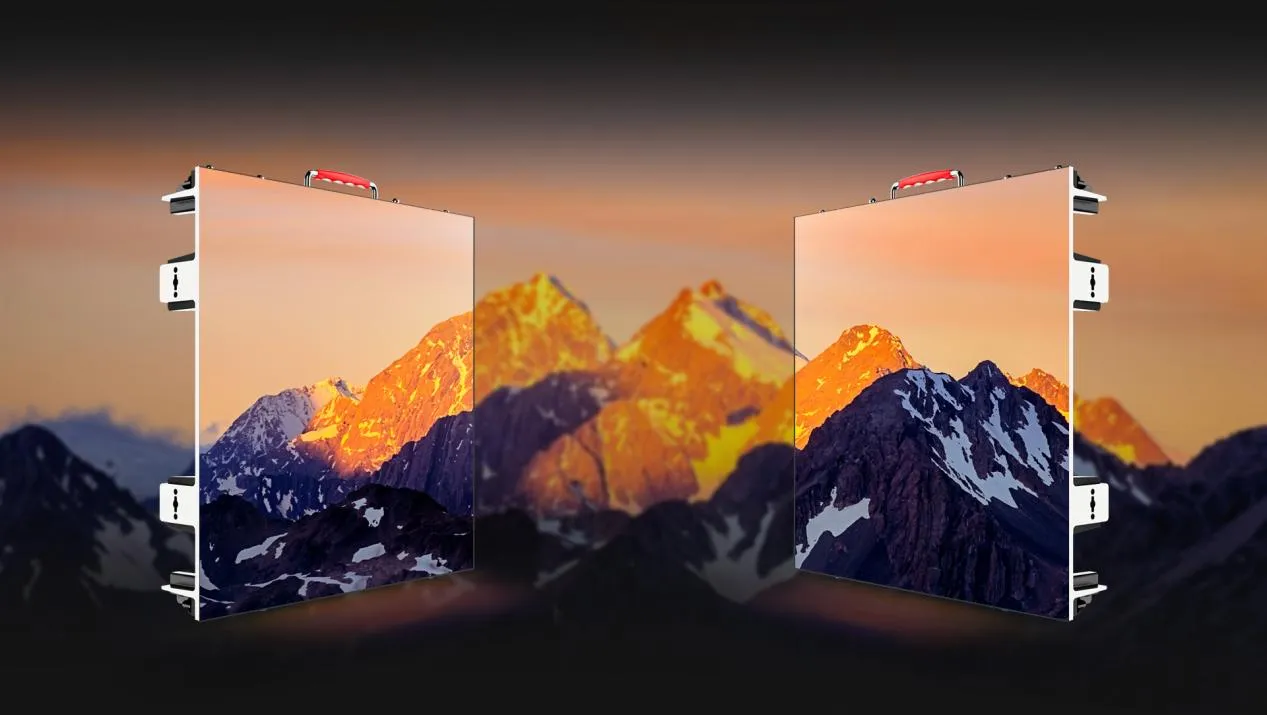

R2 Series delivers exceptional image quality with a 100% NTSC color gamut, accurately reproducing rich and vibrant colors for professional visual applications. Combined with high contrast performance and fine grayscale processing, it ensures detailed images and smooth content playback.
Designed for rental applications, R2 Series features an integrated cabinet structure that simplifies assembly and dismantling. The quick-locking design helps improve setup efficiency, allowing teams to complete installation and removal faster during events and temporary projects.

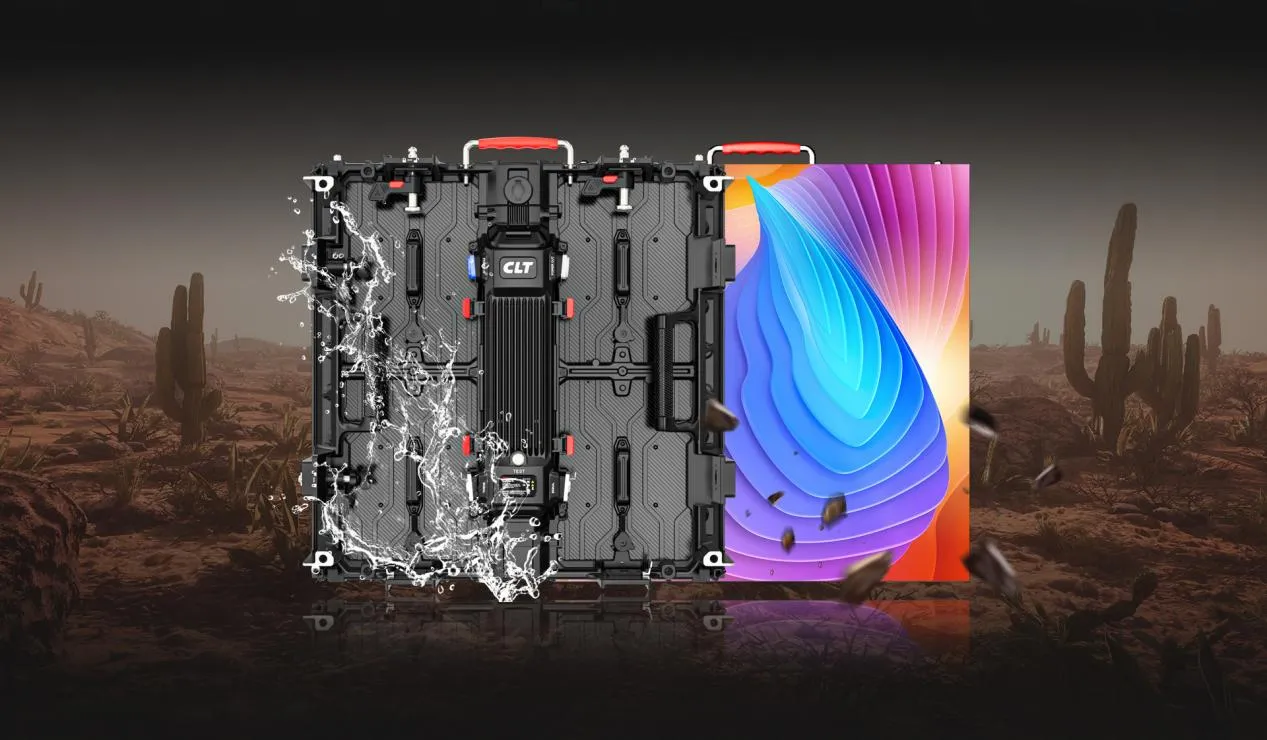

Built with multiple protection features, R2 Series is designed to handle demanding rental environments. Whether used for indoor events or outdoor applications, the display provides stable performance and reliable operation under different conditions.
R2 Series supports both front and rear maintenance with a magnetic module design, allowing quick module removal without complicated tools. The simplified maintenance process helps reduce downtime and improves service efficiency during busy event schedules.
R2 Series is designed with energy efficiency in mind, achieving an average power consumption of ≤190W/m² and a peak power consumption of ≤560W/m². The optimized power design helps reduce operating costs while supporting more environmentally conscious display solutions.
Featuring a hidden handle design, R2 Series allows convenient one-person handling and improved mobility during transportation and installation. The lightweight cabinet structure helps reduce labor requirements and increases efficiency for rental operations.
R2 Series is suitable for a wide range of applications, including stages, auditoriums, lecture halls, exhibitions, and other large-scale events. With indoor and outdoor configurations available, it provides a flexible rental display solution for different environments and project requirements.
Published specifications. Final values for your configuration are confirmed with your quote.
| Model | R191Ⅱ-500 | R261Ⅱ -500 | R291Ⅱ -500 | R391Ⅱ-500 | R390Ⅱ-500 |
|---|---|---|---|---|---|
| Product Series | R2 (Indoor) | R2 (Indoor) | R2 (Indoor) | R2 (Indoor) | R2 (Outdoor) |
| Cabinet Size | 500mmx500mm | ||||
| Pixel Pitch | 1.9mm | 2.6mm | 2.9mm | 3.9mm | 3.9mm |
| Module Size (mm) | 250mm*250mm | 250mm*250mm | 250mm*250mm | 250mm*250mm | 500mm*250mm |
| Cabinet Weight | 7.71kg | 7.71kg | 7.71kg | 7.71kg | 8.14kg |
| Cabinet Material | Die-cast aluminum | ||||
