Motorized Foldable & Liftable Movable Screen
M³ View combines fine-pitch LED technology with a modular, foldable, and movable design, giving users more freedom to configure and deploy large-format displays. Its liftable structure and anti-collision frame make handling easier, while seamless splicing allows multiple units to work together as a larger canvas. With flexible packaging options, plug-and-play setup, and high-quality visual performance, M³ View is built for applications where mobility and fast reconfiguration matter.

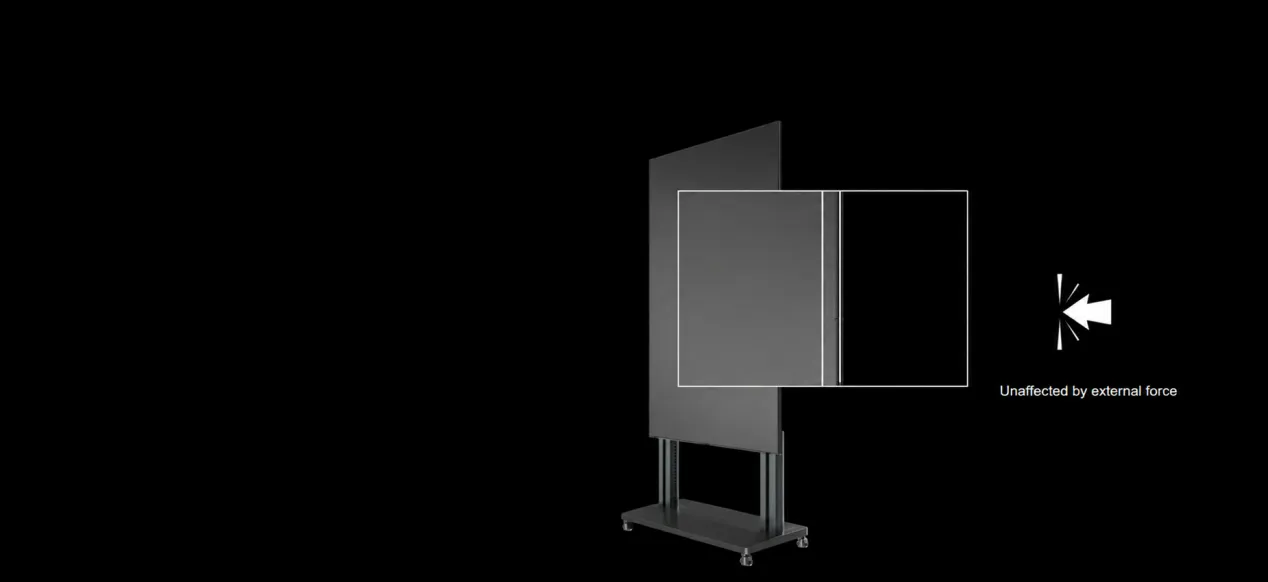

M³ View features a reinforced anti-collision frame designed to protect the display during transportation, setup, and everyday handling. The added protection helps reduce the risk of damage when the modules are moved or repositioned, making the system better suited to frequent deployment and reconfiguration.
M³ View supports multiple packaging options to accommodate different transportation and deployment requirements. Whether prepared for regular logistics or frequent project use, the packaging can be selected according to the application, helping make transportation, storage, and on-site handling more convenient.

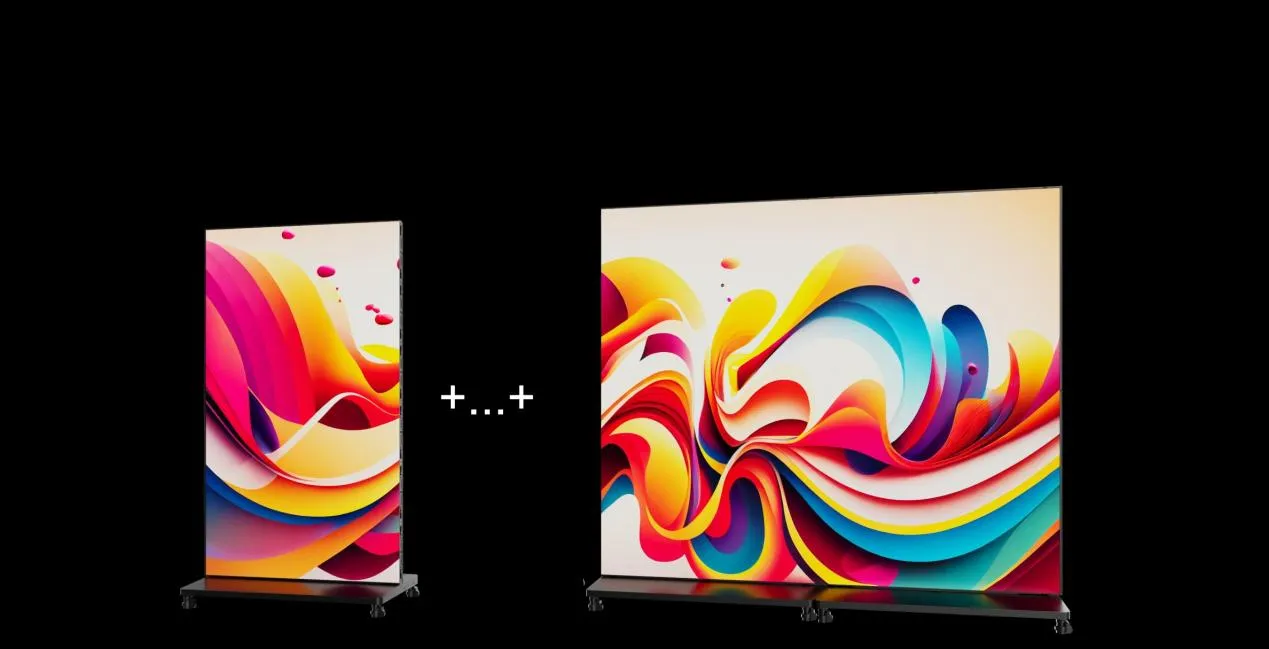

M³ View is designed for seamless multi-unit splicing, allowing three units to be combined into a standard 16:9 display. With a P1.8 configuration, the combined screen can achieve Full HD resolution, creating a larger visual canvas without obvious breaks between sections.

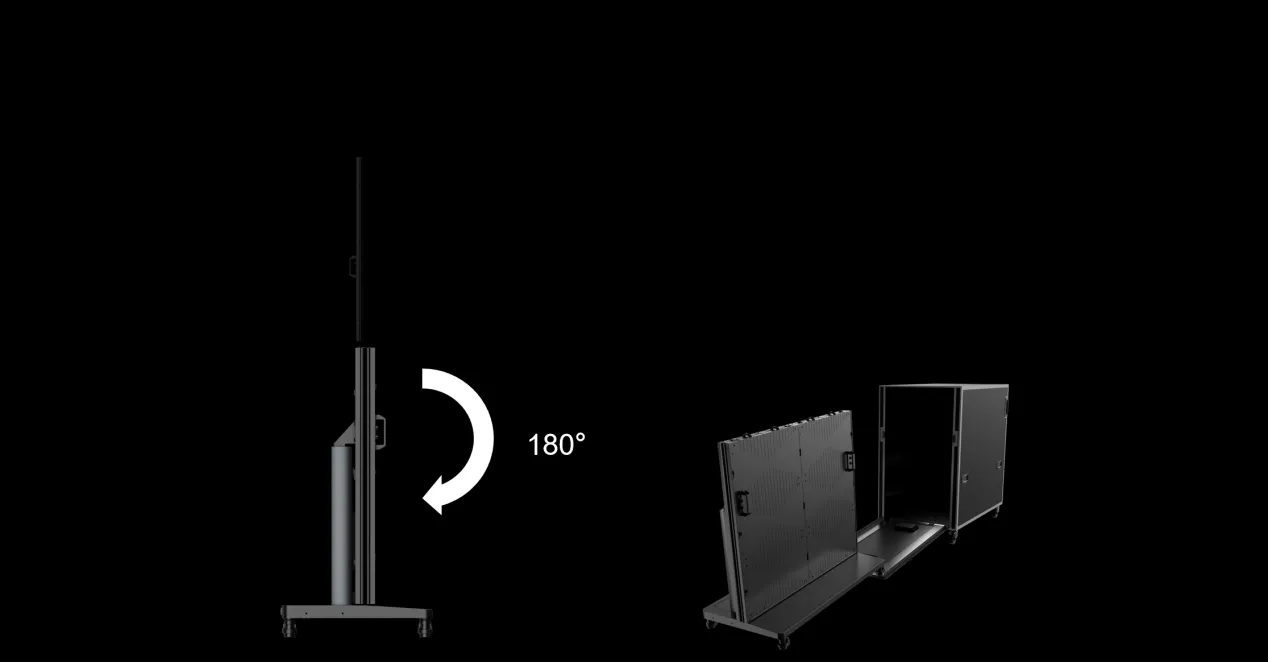

M³ View is built for applications where displays need to move from one location to another. Its foldable structure helps reduce the space required for transportation and storage, while the plug-and-play design simplifies setup once on site. This makes it easier to deploy, pack away, and move the display as project requirements change.

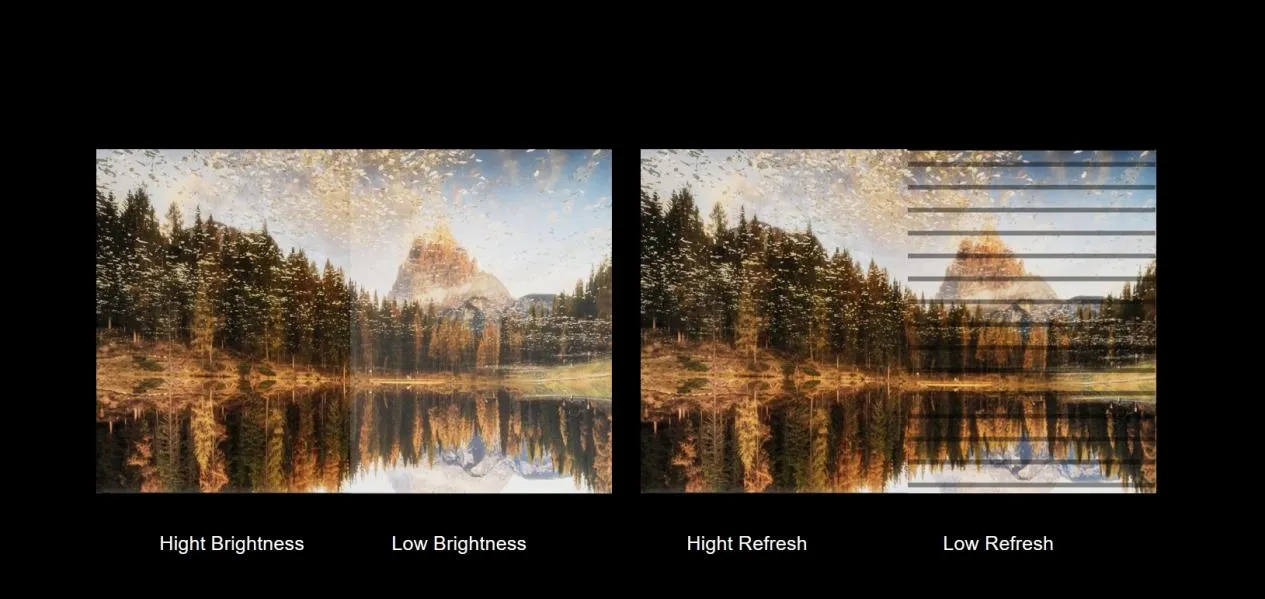

M³ View combines fine-pitch LED technology with high brightness, a 3840 Hz refresh rate, and a contrast ratio ranging from 6,000:1 to 40,000:1, depending on the configuration. The result is clear motion, strong image depth, and detailed visuals for professional content and high-impact presentations.
Published specifications. Final values for your configuration are confirmed with your quote.
| Model | M091V5M-93 | M121V5S-93 | M151V5S-93 | M181V5S-93 | M150V5M-93 | M180V5M-93 |
|---|---|---|---|---|---|---|
| Pixel Pitch | 0.9375 | 1.25 | 1.5625 | 1.875 | 1.5625 | 1.875 |
| Resolution (dots) | 1280×2160 | 960×1620 | 768×1296 | 640×1080 | 768×1296 | 640×1080 |
| Contrast Rate | 10000:1 | 6000:1 | 6000:1 | 6000:1 | 40000:1 | 40000:1 |
| Gray Scale (bit) | 14-16 | |||||
| Refresh Rate (Hz) | 3840/7680 | |||||
| Viewing Angle | 160°/ 160° | |||||
